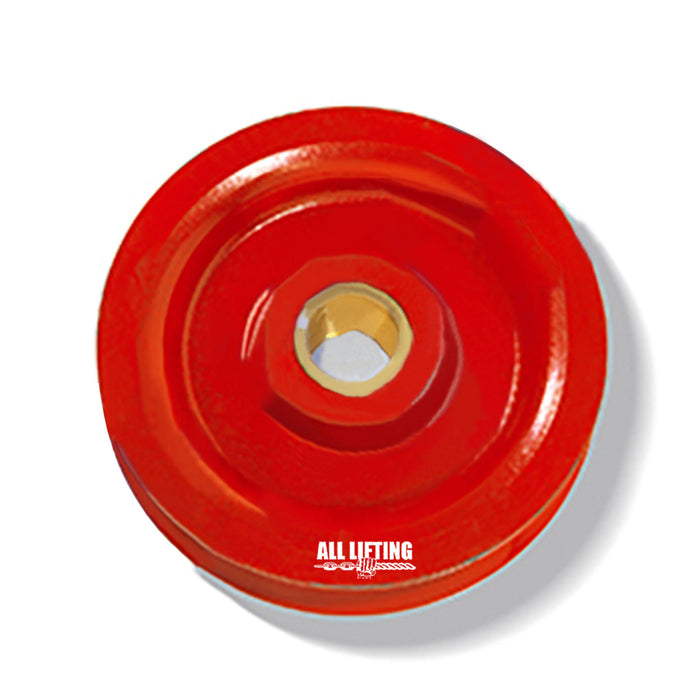

Manilla Rope Sheave
- Cast iron
- Red enamel finish
- Only for use with Manilla/fibre rope
- Bronze bush as standard
- Custom sizes and capacities are available at request
**Please note colour and dimensions may vary slightly depending on supplier**
Code |
Sheave dia. (mm) |
A (mm) |
B (mm) |
C (mm) |
E (mm) |
Rope dia. (mm) |
14860 |
63 |
12.5 |
20.5 |
19.5 |
3.2 |
10 |
14861 |
75 |
12.5 |
20.5 |
19.5 |
4.8 |
12 |
14862 |
100 |
19 |
24.5 |
23 |
6.4 |
16 |
14863 |
125 |
22 |
29.5 |
27 |
7.1 |
20 |
14864 |
150 |
25 |
32 |
30 |
8 |
24 |
14865 |
200 |
35 |
46 |
44 |
11 |
32 |
