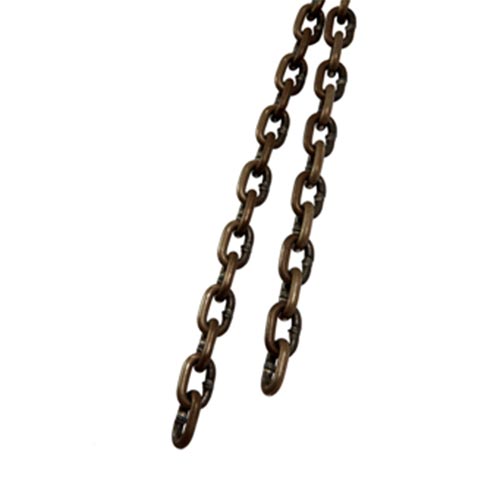

Mining Suspension Chain
- Manufactured from low-grade carbon steel
- Proof load tested to twice the maximum working load
- NOT suitable for industrial lifting purposes

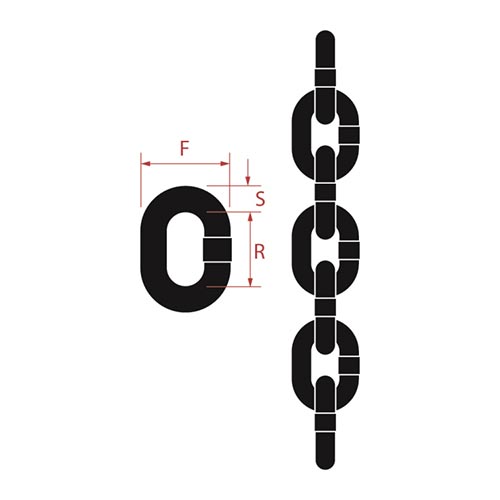

Part # | Chain Size (mm) | Link Type | WLL (t) | S (mm) | R (mm) | F (mm) | Length/100kg (m) | ||
999180 | 8 | Short | 0.64 | 8 | 23.8 | 27 | 67.8 | ||
999181 | 10 | Short | 1 | 10 | 29.8 | 34.3 | 43.1 | ||
999182 | 13 | Short | 1.7 | 12.7 | 38 | 43 | 27.7 | ||
999185 | 6 | Regular | 0.32 | 6 | 28 | 24 | 135.7 | ||
999186 | 8 | Regular | 0.53 | 7.6 | 35.8 | 29.2 | 87.7 | MSC | |
999187 | 10 | Regular | 0.86 | 9.5 | 43.4 | 35.5 | 57.8 | MSC | |
999191 | 10 | Long | 0.75 | 9.5 | 53.1 | 39 | 59.7 | MSC |
