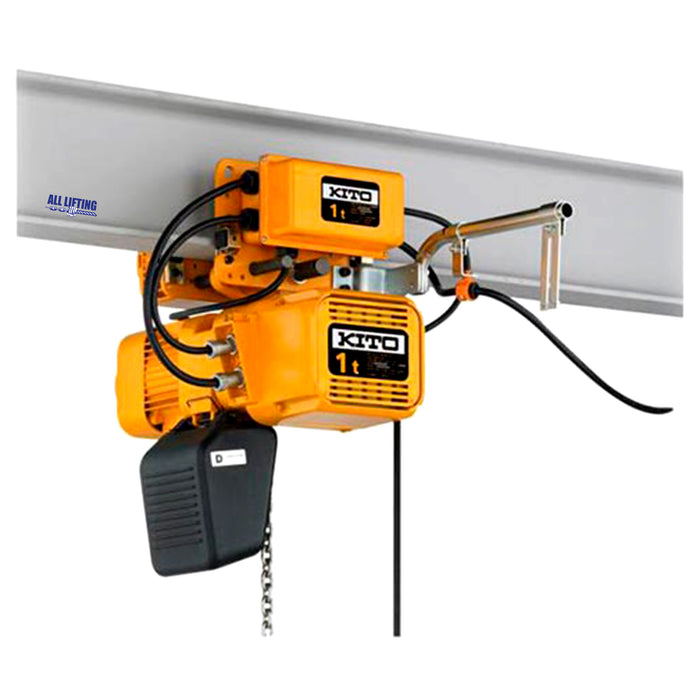

MR2 Electric Motorised Trolley
by All Lifting
Price on Application
Trolley only (hoist sold separately)
- Capacity 1 – 5 tonne
- Single speed low and standard, Dual speed high and low
- Side rollers with in-built bearings for smooth running through the minimum radius curve
- Semi tapered flange wheels for use on most monorail beams
- Excellent traversing performance with derailment prevention
- Simple gear box construction
- Pull rotor brake on motor for quick and safe stopping
- Improved balance due to a lighter weight geared motor
- 10 metre power supply cable as standard
- Motor has pull rotor brake for accurate and safe stopping
Applications: Mining, construction, engineering, entertainment.
| Part # | Model | Type | Capacity (kg) | Traverse Speed (m/min) | Beam Range Flange (mm) | Min Radius (m) | |
| EHP45901 | MR2-010S | Single speed standard flange width | 1000 | 20 | 58-153 | 0.8 | |
| EHP45902 | MR2-020S | Single speed standard flange width | 2000 | 20 | 82-178 | 0.8 | |
| EHP45903 | MR2-030S | Single speed standard flange width | 3000 | 20 | 82-178 | 1 | |
| EHP45904 | MR2-050S | Single speed standard flange width | 5000 | 20 | 100-178 | 1.8 | |
| EHP45921 | MR2-01IS | Dual Speed standard flange width | 1000 | 24/4 | 58-153 | 0.8 | |
| EHP45922 | MR2-02IS | Dual Speed standard flange width | 2000 | 24/4 | 82-178 | 0.8 | |
| EHP45924 | MR2-03IS | Dual Speed standard flange width | 3000 | 24/4 | 82-178 | 1 | |
| EHP45925 | MR2-05IS | Dual Speed standard flange width | 5000 | 24/4 | 100-178 | 1.8 | |
| EHP45911 | MR2-010SW | Single speed wide flange | 1000 | 20 | 154-305 | 0.8 | |
| EHP45912 | MR2-020SW | Single speed wide flange | 2000 | 20 | 179-305 | 0.8 | |
| EHP45913 | MR2-030SW | Single speed wide flange | 3000 | 20 | 179-305 | 1 | |
| EHP45914 | MR2-050SW | Single speed wide flange | 5000 | 20 | 179-305 | 1.8 | |
| EHP45931 | MR2-010ISW | Dual speed wide flange | 1000 | 24/4 | 154-305 | 0.8 | |
| EHP45932 | MR2-020ISW | Dual speed wide flange | 2000 | 24/4 | 179-305 | 0.8 | |
| EHP45933 | MR2-030ISW | Dual speed wide flange | 3000 | 24/4 | 179-306 | 1 | |
| EHP45935 | MR2-050ISW | Dual speed wide flange | 5000 | 24/4 | 179-307 | 1.8 |
