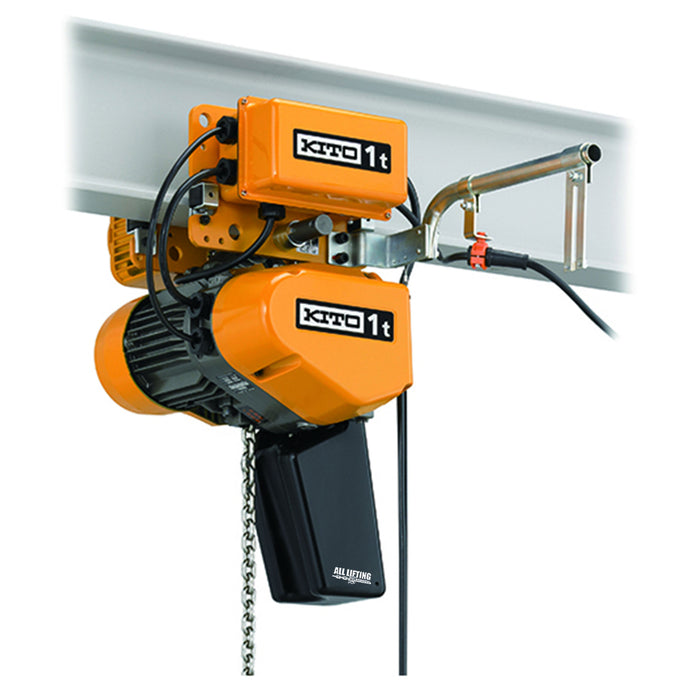

MR2Q Electric Motorised Trolley
by All Lifting
Price on Application
Trolley only (hoist sold separately)
- Capacity 125kg – 1000kg
- Dual speed with variations
- Standard and wide beam flange width
- Side rollers with in-built bearings for smooth running through the minimum radius curve
- Excellent traversing performance with derailment prevention
- Simple gearbox construction
- Improved balance due to a lighter weight geared motor
- Australian Standard AS1418.2
Industry applications: mining, construction, engineering and manufacturing.
| Part # | Capacity (kg) | Model | Traverse Speed (m/min) | Beam Range (mm) | Min. Radius (m) | |
| EHP47162 | 125 | MR2Q001IS | 24/4 | 58-153 | 0.8 | |
| EHP47163 | 250 | MR2Q003IS | 24/4 | 58-153 | 0.8 | |
| EHP47164 | 500 | MR2Q005IS | 24/4 | 58-153 | 0.8 | |
| EHP47160 | 1000 | MR2Q010IS | 24/4 | 58-153 | 0.8 | |
| EHP47167 | 125 | MR2Q001IS | 24/4 | 154-305 | 0.8 | |
| EHP47168 | 250 | MR2Q003IS | 24/4 | 154-305 | 0.8 | |
| EHP47170 | 500 | MR2Q005IS | 24/4 | 154-305 | 0.8 | |
| EHP47165 | 1000 | MR2Q010IS | 24/4 | 154-305 | 0.8 |
