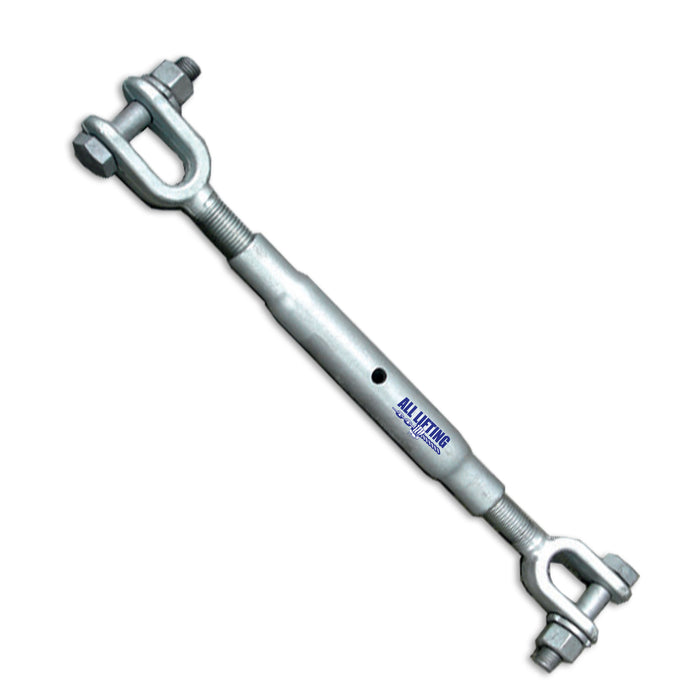

Rated Rigging Screw Jaw and Jaw
- Often used for straight or inline tension applications
- Commonly used in conjunction with wire rope and chain assemblies
- Manufactured from a high tensile material
- Hot dipped galvanised finish
- Suitable for industrial lifting purposes
- Available in other sizes, working loads, and configurations at request
CODE |
SIZE |
WLL tonne |
OPEN E (mm) |
CLOSED F (mm) |
A (mm) |
L (mm) |
K (mm) |
M (mm) |
14373 |
10 |
0.3 |
349 |
235 |
10 |
8 |
11 |
21 |
14374 |
13 |
0.5 |
524 |
343 |
13 |
9 |
19 |
35 |
14375 |
16 |
0.75 |
550 |
361 |
16 |
13 |
22 |
51 |
14365 |
20 |
1.25 |
550 |
387 |
20 |
16 |
22 |
48 |
14376 |
24 |
2.5 |
822 |
556 |
24 |
22 |
32 |
65 |
|
33 |
5 |
872 |
604 |
3 |
24 |
38 |
76 |
|
38 |
6 |
949 |
670 |
38 |
33 |
47 |
90 |
