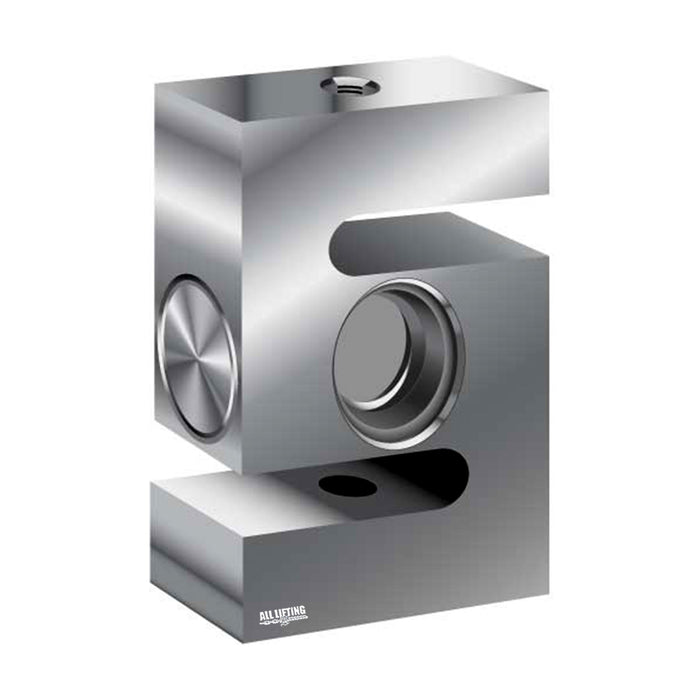

S Beam Load Cell
by All Lifting
Price on Application
- Operating Temp: -30 to +80 °C
- Accuracy: +/- 0.3% of applied load
- Protection: IP68
- High accuracy
- High endurance
- Built in overload protection
| Capacity (t) | Resolution (t) | Weight (kg) |
| 0.5 | 0.0002 | 0.9 |
| 1 | 0.0005 | 0.9 |
| 2 | 0.001 | 0.9 |
| 5 | 0.001 | 1.9 |
| Capacity (t) | A | B | C | D | E | F |
| 0.5 | 70 | 90 | 19 | 19 | M12x1.75 | 32 |
| 1 | 70 | 90 | 19 | 19 | M16x2 | 32 |
| 2 | 70 | 90 | 19 | 19 | M16x2 | 32 |
| 5 | 100 | 120 | 26 | 26 | M24x2 | 45 |
