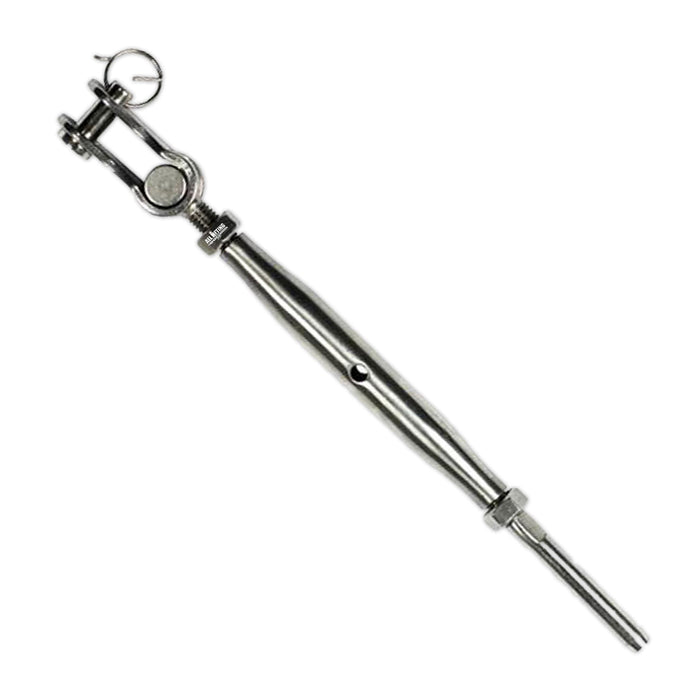

Stainless Steel Bottlescrew Toggle and Swage Stud
by All Lifting
$25.02
- Stainless steel bottle screw
- Toggle and swage stud type
- Grade 316 stainless steel
- Suits wire sizes 3mm-12mm
**Not rated for lifting purposes**
|
Code |
Thread Size |
To Suit Wire Size |
L1 Min |
L1 Max |
H |
A |
Pin Dia |
|
133121T-63 |
M6 |
1/8” |
142 |
215 |
12 |
8 |
6 |
|
133121T-64 |
M6 |
5/32” |
142 |
215 |
12 |
8 |
6 |
|
133121T-84 |
M8 |
5/32” |
180 |
260 |
17 |
11.5 |
8 |
|
133121T-85 |
M8 |
3/16” |
180 |
260 |
17 |
11.5 |
8 |
|
133121T-105 |
M10 |
3/16” |
215 |
310 |
20 |
10 |
9 |
|
133121T-106 |
M10 |
1/4’” |
215 |
310 |
20 |
14 |
9 |
|
133121T-126 |
M12 |
1/4’” |
250 |
370 |
25 |
14 |
12 |
|
133121T-128 |
M12 |
5/16” |
250 |
370 |
25 |
14 |
12 |
|
133121T-168 |
M16 |
5/16” |
295 |
410 |
25 |
18 |
16 |
|
133121T-1638 |
M16 |
3/8” |
295 |
410 |
25 |
18 |
16 |
|
133121T-1610 |
M16 |
10mm |
295 |
410 |
25 |
18 |
16 |
|
133121T-2010 |
M20 |
10mm |
325 |
475 |
30 |
20 |
19 |
|
133121T-2012 |
M20 |
1/2" |
325 |
475 |
30 |
20 |
19 |
|
133121T-2012M |
M20 |
12mm |
325 |
475 |
30 |
20 |
19 |
|
133121T-2038 |
M20 |
3/8” |
325 |
475 |
30 |
20 |
19 |
