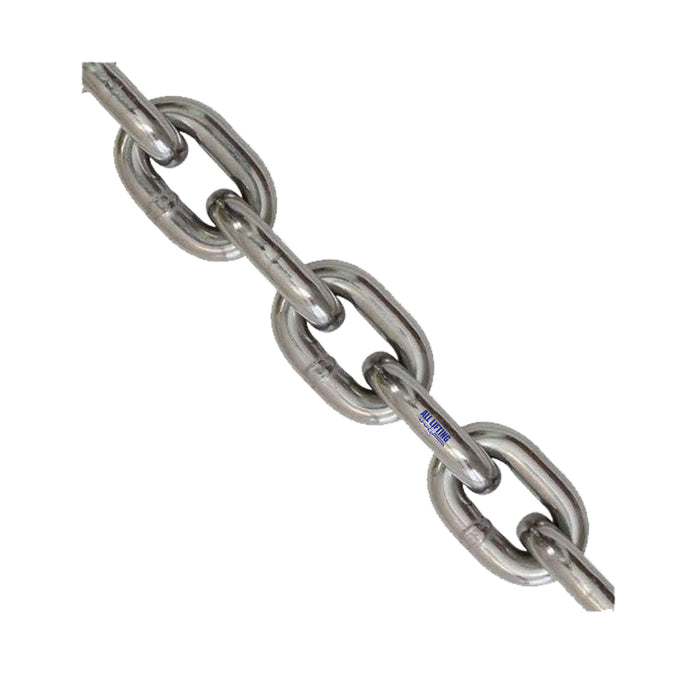

Stainless Steel Commercial Medium Link Chain 316

by All Lifting
$3.65
  • Stainless steel chain
  • Medium link
  • Commercial grade
  • Grade 316 stainless
  • Sold per meter
  • Rated s/s chain available at request

**Not rated for lifting purposes**

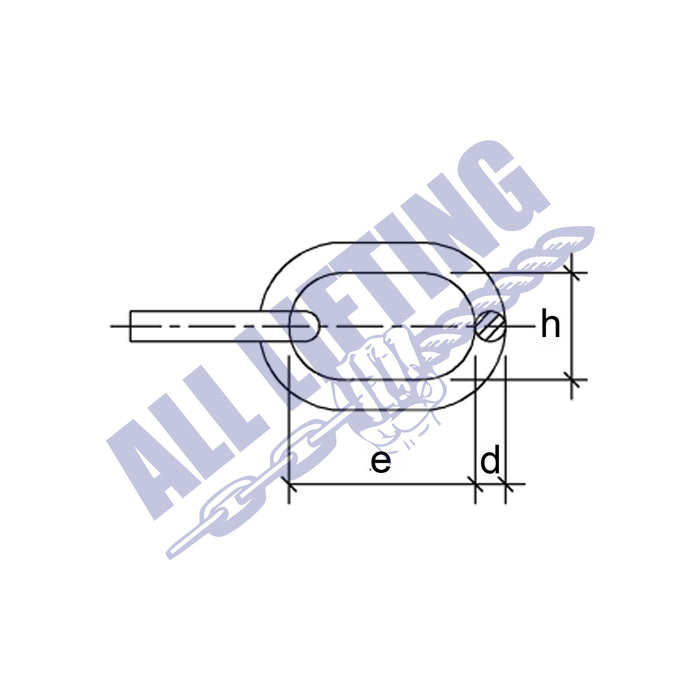

Part # Dia. (mm) e (mm) h (mm) Weight (kg/m)
13CH316-02M 2 14.8 4.25 .075
13CH316-03M 3 15.6 7.2 0.2
13CH316-04M 4 19.7 6.6 0.3
13CH316-05M 5 22 9.5 0.5
13CH316-06M 6 27.3 9.75 0.77
13CH316-08M 8 31.7 13.8 1.3
13CH316-10M 10 38.9 14.05 2.05
13CH316-12M 12 47.2 18.5 2.95 7300
13CH316-16M 16 59 24.5 5 13300
