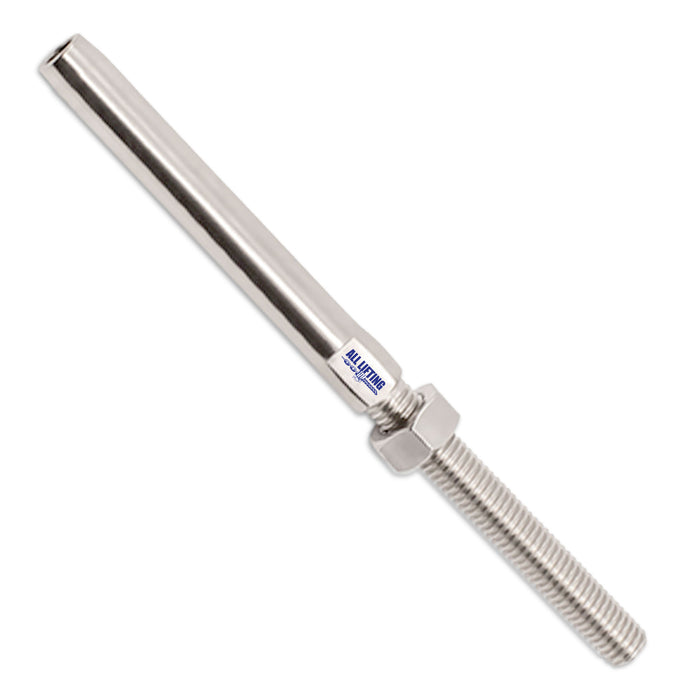

Stainless Steel Swage Stud Threaded Terminal
- Swage stud
- Threaded terminal
- Grade 316 stainless steel
|
Code |
Wire Dia. (mm) |
Wire Dia. (INCH) |
Thread |
L1 |
L2 |
L3 Thread |
|
137801-225 |
2.4 |
3/32 |
M5 |
81 |
30 |
40 |
|
137801-225L |
2.4 |
3/32 |
M5 LEFT |
81 |
30 |
40 |
|
137801-02M |
2.4 |
3/32 |
M6 |
86 |
32 |
40 |
|
137801-03L |
|
1/8 |
M6 LEFT |
91 |
40 |
40 |
|
137801-03M |
|
1/8 |
M6 |
91 |
40 |
40 |
|
137801M-03M |
3 |
|
M6 |
97 |
40 |
40 |
|
137801M-03ML |
3 |
|
M6 LONG |
118 |
40 |
75 |
|
137801-03ML |
|
1/8 |
M6 LONG |
118 |
40 |
75 |
|
137801-03MY |
|
1/8 |
M6 LONG |
100 |
52 |
42 |
|
137801-305 |
|
1/8 |
M5 |
91 |
40 |
40 |
|
137801-020 |
|
1/8 |
M5 |
59 |
33 |
22.5 |
|
137801M-020 |
3 |
|
M5 |
58.7 |
34 |
22.5 |
|
137801M-305M |
3 |
|
M5 |
91 |
40 |
40 |
|
137801-305L |
|
1/8 |
M5 LEFT |
90 |
40 |
40 |
|
137801-04L |
4 |
5/32 |
M8 LEFT |
118 |
43 |
57 |
|
137801-04M |
4 |
5/32 |
M8 |
120 |
47 |
90 |
|
137801-04ML |
4 |
5/32 |
M8 LONG |
143 |
47 |
90 |
|
137801-046 |
4 |
5/32 |
M6 |
116 |
46 |
50 |
|
137801-046L |
4 |
5/32 |
M6 LEFT |
116 |
46 |
50 |
|
137801-05L |
|
3/16 |
M8 LEFT |
121 |
58 |
57 |
|
137801-05M |
|
3/16 |
M8 |
121 |
53 |
60 |
|
137801-510 |
|
3/16 |
M10 |
129 |
56 |
60 |
|
137801-05ML |
|
3/16 |
M10 LONG |
177 |
58 |
115 |
|
137801M-610 |
6 |
|
M10 |
164 |
67 |
85 |
|
137801-06M |
6 |
|
M12 |
162 |
67 |
78 |
|
137801-610 |
|
¼ |
M10 |
164 |
67 |
85 |
|
137801M-06M |
6 |
|
M12 |
162 |
67 |
78 |
|
137801-06M |
|
¼ |
M12 |
162 |
67 |
78 |
|
137801-06ML |
|
¼ |
M12 LONG |
222 |
67 |
143 |
|
137801-128 |
8 |
5/16 |
M12 |
180 |
85 |
83 |
|
137801-08M |
8 |
5/16 |
M16 |
215 |
80 |
112 |
|
137801-1638 |
|
3/8 |
M16 |
215 |
90 |
105 |
|
137801-2038 |
|
3/8 |
M20 |
215 |
90 |
105 |
|
13780M-2010 |
10 |
|
M20 |
215 |
91 |
106 |
|
137801-2012 |
|
½ |
M20 |
245 |
120 |
118 |
|
137801M-2012 |
12 |
|
M20 |
245 |
120 |
118 |
|
137801M-2414 |
14 |
|
M24 |
335 |
165 |
125 |
