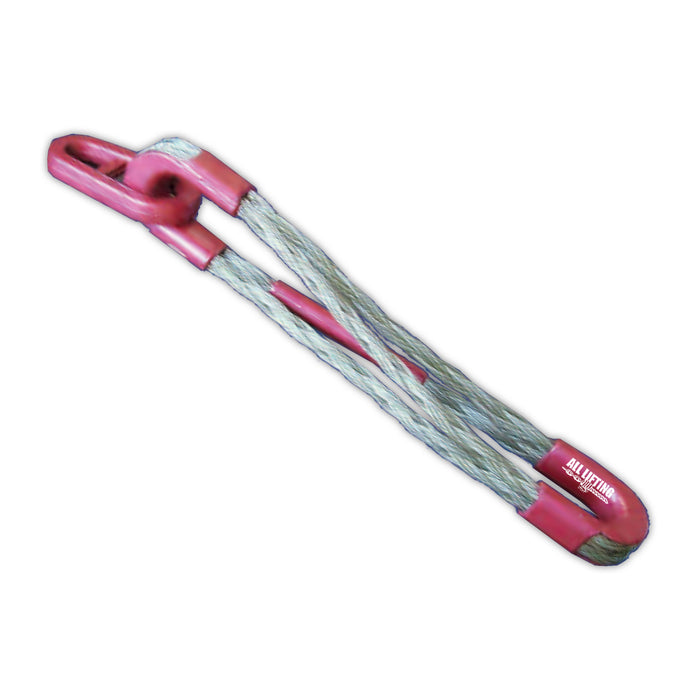

Superflex Recovery Strop
by All Lifting
Price on Application
- Designed for the recovery of mining machines
- Slings made from superflex cable
- Fitted with special cast steel thimbles which enable the bulldozer ripper to engage directly into the eye section without damage
- Provide strength and durability to tow or recover a disabled mining machine
- Easily rolled up and stored after use
- Can be used many times without damage
- These strops posses a high elastic modulus, which mean less stretch and no ricochet of parts if a cable breaks
- Please send us an enquiry for more information on this product
| Breaking Strength (t) | Cable Size | Number of Plies | Recommended Bow Shackle Dia. (mm) | Length (m) | Length (m) | Length (m) | Length (m) |
| 68 | Six-0 | 2 | 35 | 6 | 10 | 15 | 20 |
| 100 | Eight-0 | 2 | 44 | 6 | 10 | 15 | 20 |
| 150 | Ten-0 | 2 | 51 | 6 | 10 | 15 | 20 |
| 200 | Eight-0 | 4 | 57 | 6 | 10 | 15 | 20 |
| 300 | Ten-0 | 4 | 63 | 6 | 10 | 15 | 20 |
| Stop Size | Mass of 6m Assembly (kg) | Mass of 10m Assembly (kg) | Mass of 15m Assembly (kg) | Mass of 20m Assembly (kg) |
| 68 | 38 | 58 | 75 | 96 |
| 100 | 56 | 80 | 111 | 141 |
| 150 | 108 | 146 | 195 | 243 |
| 200 | 100 | 140 | 210 | 271 |
| 300 | 205 | 282 | 378 | 474 |
