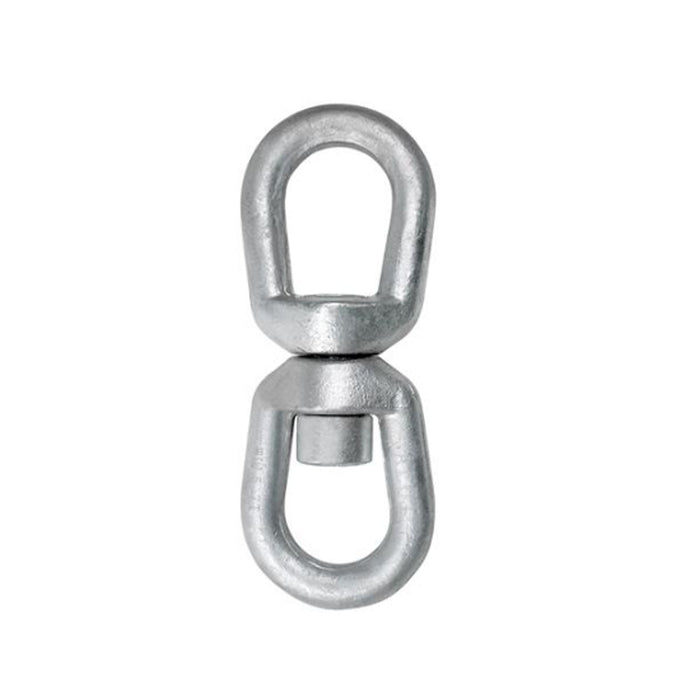

Swivel Bow Bow Type
- Commonly used for marine and fishing applications
- Sizes available from 6mm to 25mm
- Manufactured from high tensile steel, quenched, tempered and hot dipped galvanized
**WARNING: Swivels are intended as positioning devices and are not to rotate under load. Applications in corrosive environment requires shank and nut inspection and lubrication regularly**
**NOT for lifting applications**

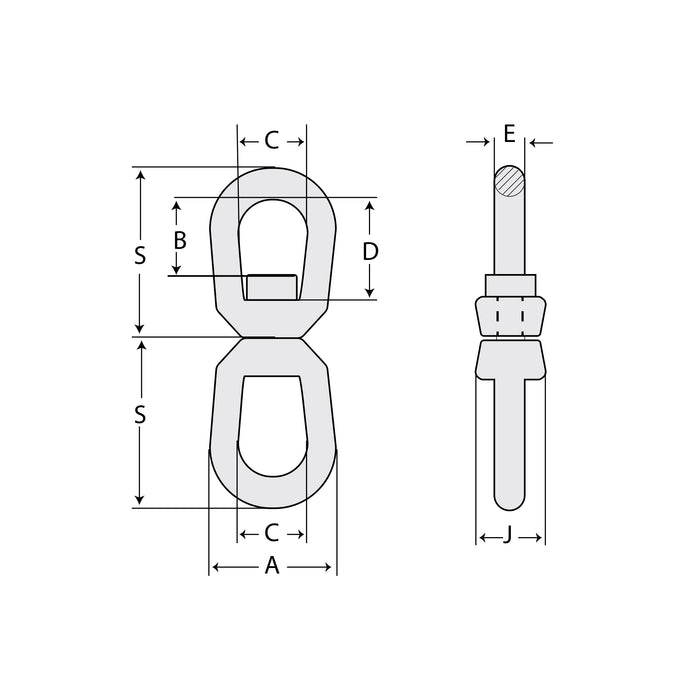

Part # | Size (mm) | WLL (t) | Weight (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | S (mm) | J (mm) | |
14MSBB06 | 6 | 0.39 | 0.1 | 31.8 | 17.5 | 19.1 | 26.9 | 6 | 42.9 | 17.5 | |
14MSBB08 | 8 | 0.57 | 0.18 | 41.4 | 20.6 | 25.4 | 31.8 | 8 | 52 | 20.6 | |
14MSBB10 | 10 | 1.02 | 0.32 | 51 | 23.9 | 31.8 | 38.1 | 10 | 63.5 | 25.4 | |
14MSBB12 | 12 | 1.63 | 0.6 | 63.5 | 33.3 | 38.1 | 51 | 12 | 81 | 33.3 | |
14MSBB16 | 16 | 2.36 | 1.13 | 76 | 39.5 | 44.5 | 60.5 | 16 | 98.5 | 38.1 | |
14MSBB20 | 20 | 3.27 | 1.82 | 89 | 44.5 | 51 | 67 | 20 | 109 | 47.8 | |
14MSBB25 | 25 | 5.67 | 4.06 | 114 | 58.5 | 63.5 | 89 | 25 | 146 | 60.5 |
