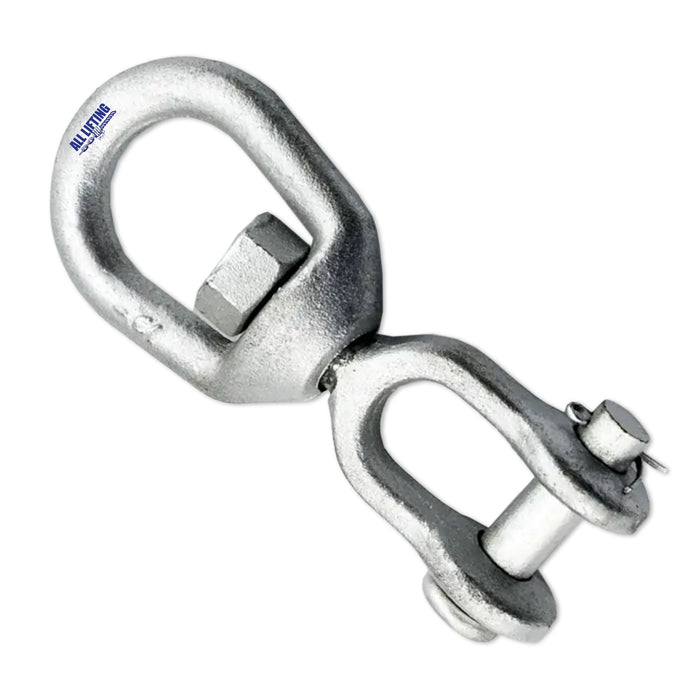

Swivel Bow Clevis Type
- Commonly used for marine and fishing applications
- Sizes available from 6mm to 25mm
- Manufactured from high tensile steel, quenched, tempered and hot-dipped galvanized
- Ultimate load is 5 times working load limit
**WARNING: Swivels are intended as positioning devices and are not to rotate under load. Applications in an corrosive environment requires shank and nut inspection and regular lubrication**
**NOT for lifting applications**
Part # | Size (mm) | WLL (t) | Weight (kg) | B (mm) | D (mm) | J (mm) | K (mm) | N (mm) | U (mm) | V (mm) | |
14MSBC06 | 6 | 0.39 | 0.1 | 17.5 | 6 | 17.5 | 11.9 | 22.4 | 42.9 | 42.9 | |
14MSBC08 | 8 | 0.57 | 0.15 | 20.6 | 8 | 20.6 | 12.7 | 22.4 | 52 | 46 | |
14MSBC10 | 10 | 1.02 | 0.3 | 23.9 | 10 | 25.4 | 16 | 26.9 | 63.5 | 57 | |
14MSBC12 | 12 | 1.63 | 0.61 | 33.3 | 12 | 33.3 | 18.1 | 33.3 | 81 | 73 | |
14MSBC16 | 16 | 2.36 | 1.12 | 39.5 | 16 | 41.4 | 23.9 | 38.1 | 98.5 | 87 | |
14MSBC20 | 20 | 3.27 | 1.76 | 44.5 | 20 | 47.8 | 28.7 | 44.5 | 109 | 102 | |
14MSBC25 | 25 | 5.67 | 4.46 | 58.5 | 25 | 67 | 44.5 | 71.5 | 146 | 151 |
