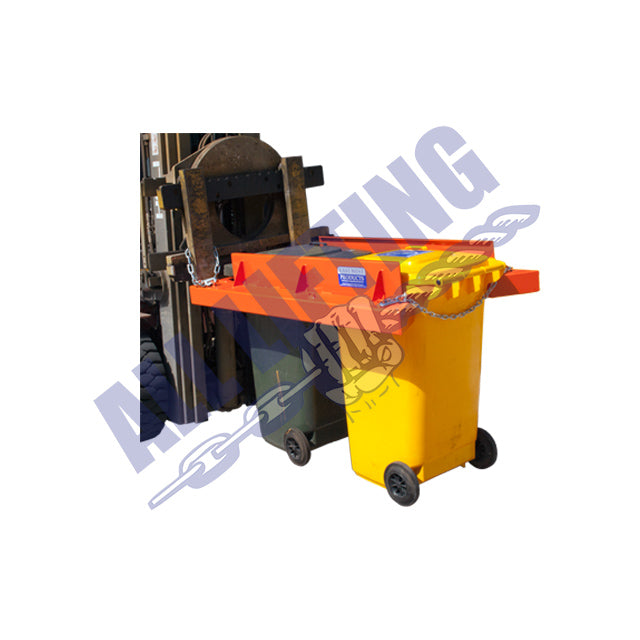

Wheelie Bin Lifter

by All Lifting
Price on Application
Enquire

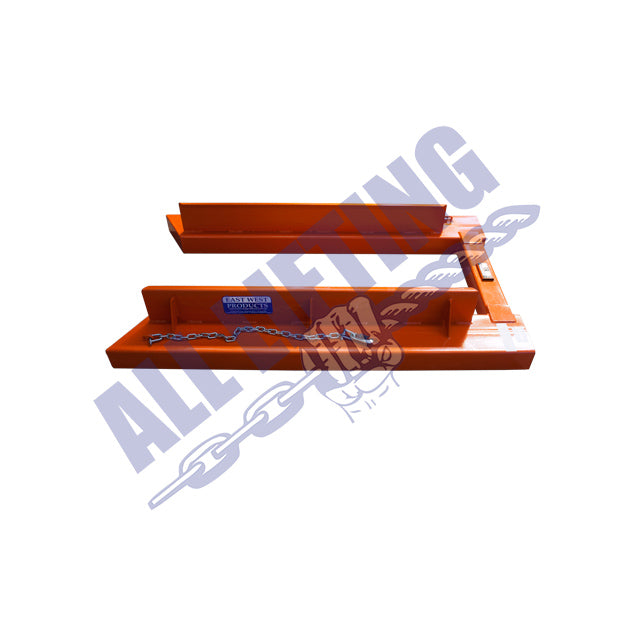

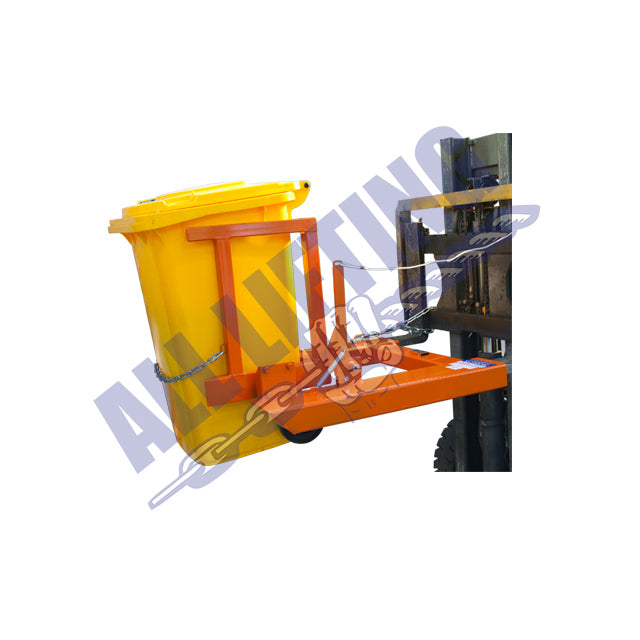

  • Safely and easily lifts 240 litre plastic bins

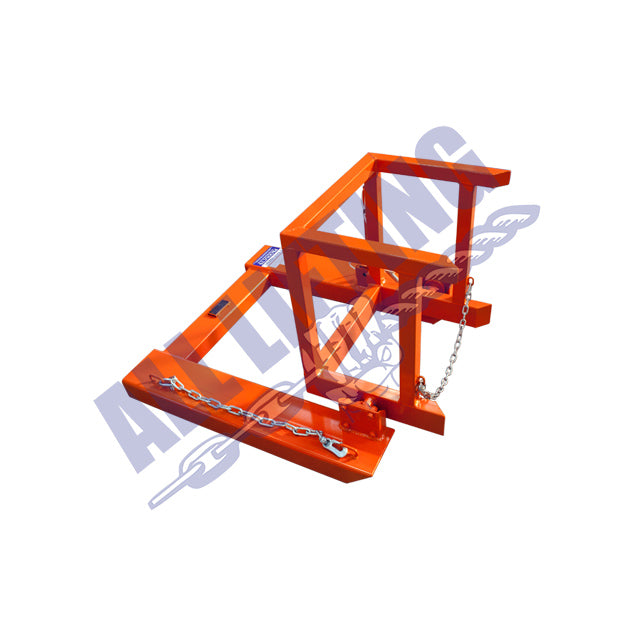

  • Secured in the cradle by a safety chain

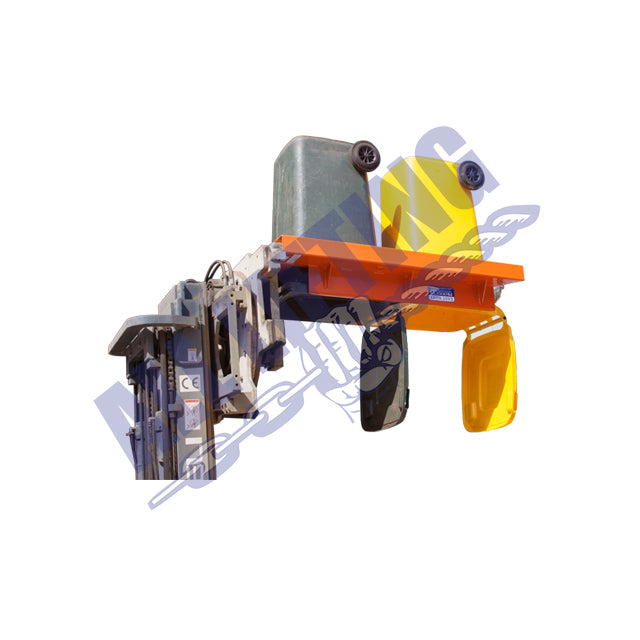

  • 1 bin option (with 180 degree rotation), or 2 bin option
  • Return the bin to upright position manually or with a forklift
  • Automatically locks into position once upright
  • Enamel painted over primed steel finish

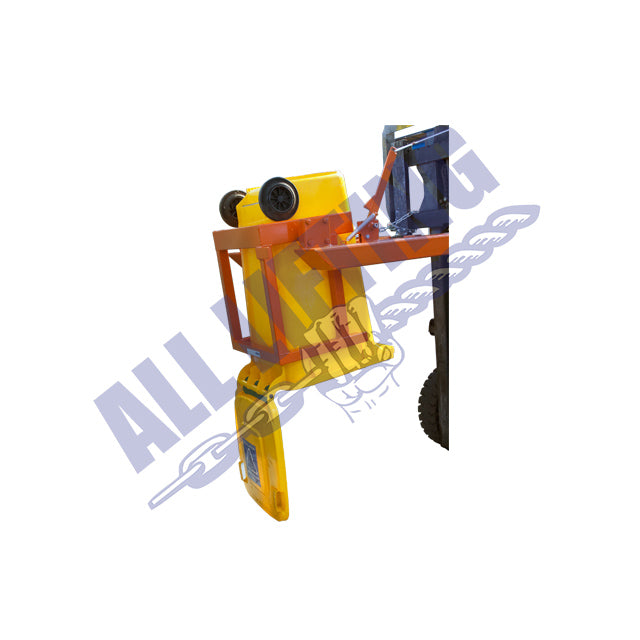

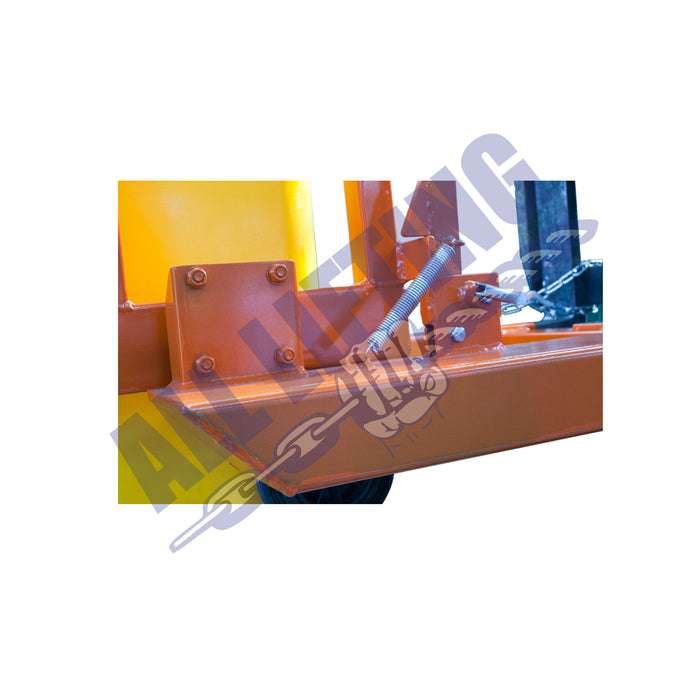

The FWE24 model is fitted with a robust tipping mechanism, the tipping action is carried out by pull cord operation from the forklift drivers seat. Tipping can only be carried out once locking pin is released, preventing accidental tipping.



Part # No. of Bins WLL (kg) Load Centre (mm) Unit Weight (kg) Pocket size (mm) Pocket centres (mm) HGC (mm) VCG (mm)

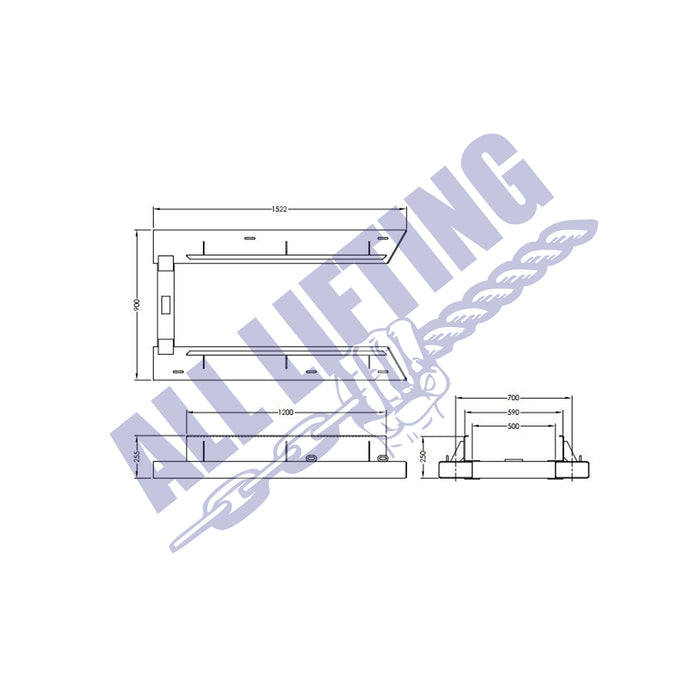

189FWB24 2 500 600 100 185 x 65 700 690 -20

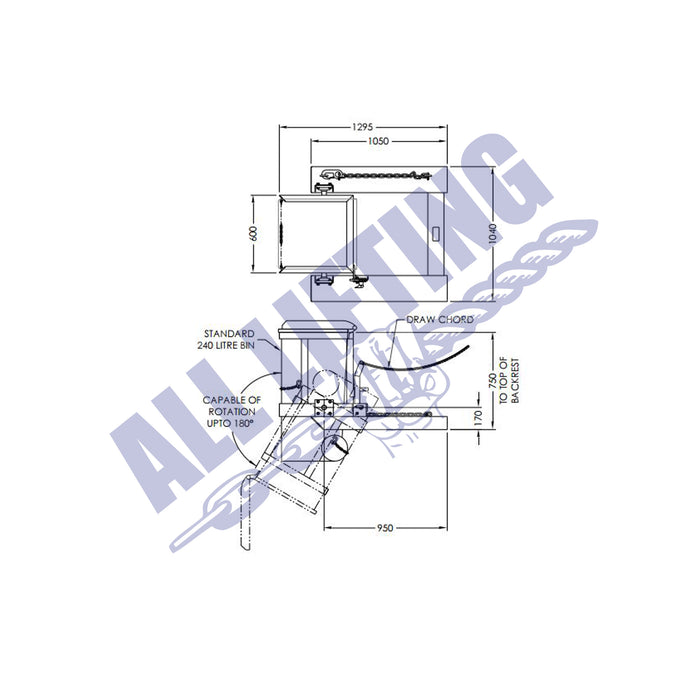

189FWE24 1 250 1000 80 185 x 65 840 650 80
