Wheelie Bin Tippers

by All Lifting
Price on Application
Enquire
  • Empty standard 240 litre plastic bins without leaving your forklift
  • Simple and safe 180 degree tipping operation
  • Bin cradle and safety chain attached to the backrest

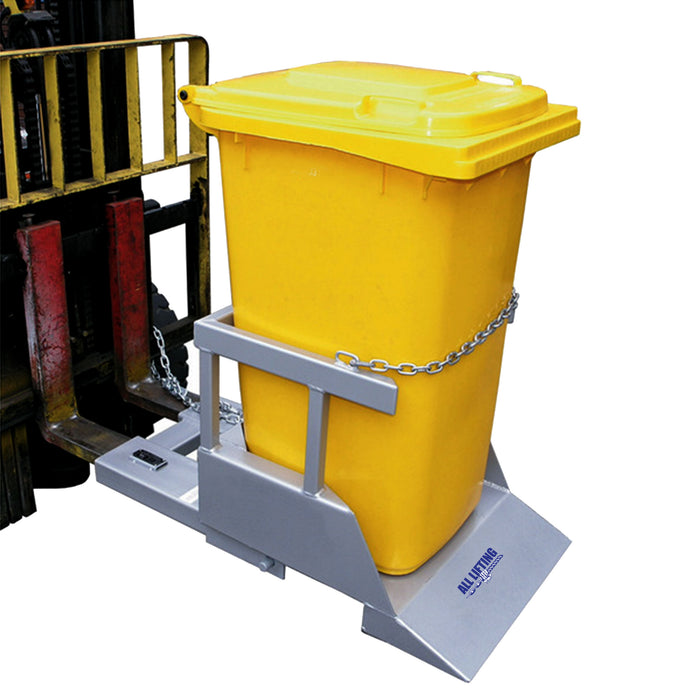

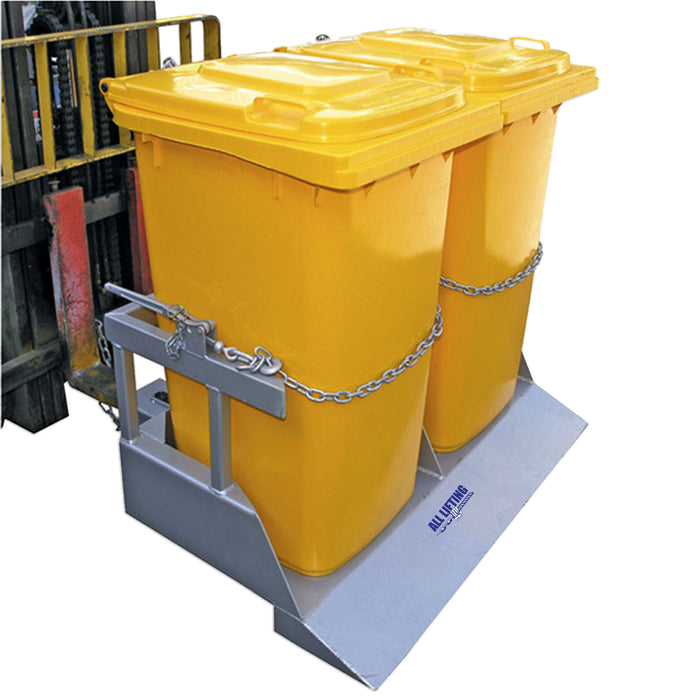

  • 1 or 2 bin options available
  • Standard finish is zinc



Part # No. of Bins WLL (kg) Load Centre (mm) Unit Weight (kg) Pocket size (mm) Pocket centres (mm) HGC (mm) VCG (mm)
189NWB-T1 1 500 1200 100 165 x 65 340 720 90
189NWB-T2 2 1000 1200 150 165 x 65 340 720 90
