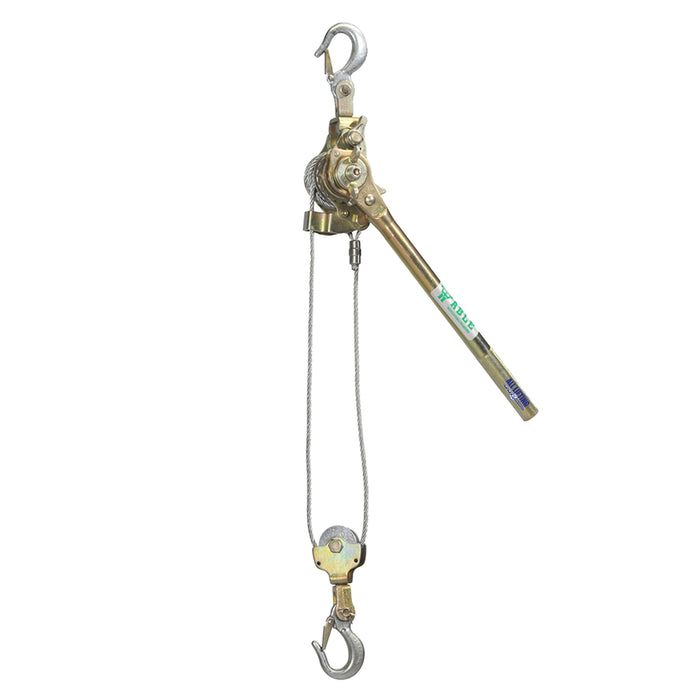

Wire Rope Hand Ratchet Puller
- Up and Down movement via a lever
- Equipped with automatic mechanical brake and change pawl
- Easily field repairable and inexpensive to maintain
- Solid ductile and malleable iron construction
- Up and down movement controlled by lever
- Tried and tested method
Designed for electric wire pulling for applications such as electric power, telephone line works, construction, farm and general purposes.
Part # | Tractor Capacity (kg) | Wire Rope Size Dia. (mm) | Wire Rope Length (m) | No. of Hooks | Net Weight (kg) | |
10HRP010 | 1000 | 5 | 2.3 | 2 | 15 | |
10HRP015 | 1500 | 6 | 2.3 | 2 | 16 | |
10HRP02020 | 2000 | 6 | 2.3 | 2 | 24 |
