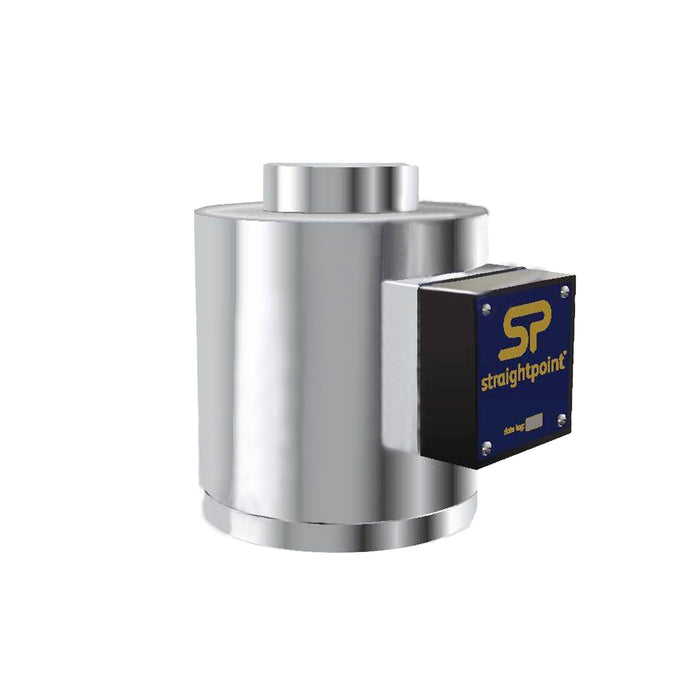

Wireless Compression Loadcell

by All Lifting
Price on Application
  • Battery Type: Handheld-2 x AA / Loadcell 2 x AA
  • Battery Life: Handheld-400hrs / Loadcell 400hrs continuous
  • Operating Temp: -10 to +50 °C
  • Frequency: 2.4GHz
  • Range: 250 metres
  • Data Rate: 3 updates per second



Capacity (t) Resolution (t) Weight (kg)
50 0.01 6.2
100 0.05 15.5
150 0.05 15.5
300 0.1 65
500 0.2 65



Capacity (t) A B D E F G
50 102 127 59 13 M20x2.5 152
100 152 184 80 26 M20x2.5 432
150 152 184 80 26 M20x2.5 432
300 185 300 155 27.5 M20x2.5 432
500 185 300 155 27.5 M20x2.5 432
