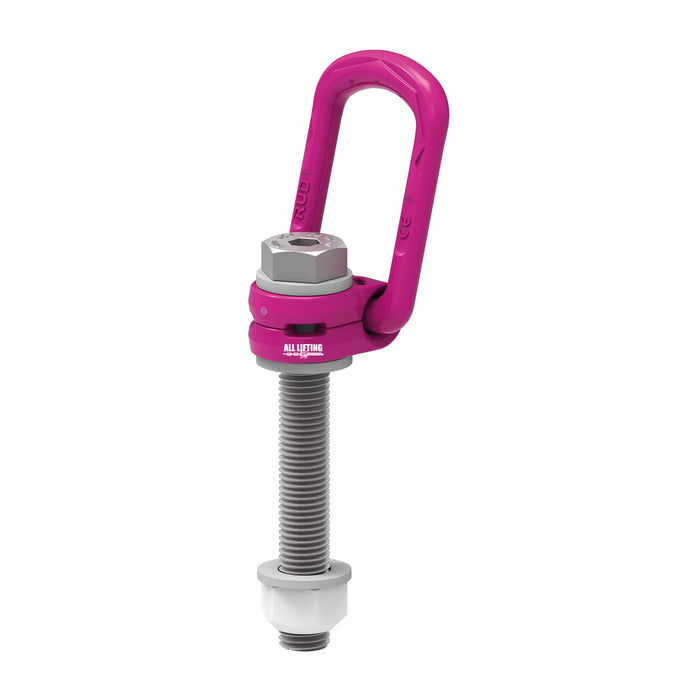

Load Ring Bolt-On VLBG-PLUS VARIO - RUD

by All Lifting
Price on Application
Enquire

  • Description

    The Load Ring Bolt-On VLBG-PLUS VARIO is a high-performance lifting point designed for demanding industrial applications. It features a 4:1 safety factor and is fully tested and DGUV-approved for maximum reliability. Manufactured from Grade 120 material, it provides exceptional strength, wear resistance and suitability for extreme temperatures ranging from –40°C to 100°C, with operation permitted up to 350°C at a reduced WLL. The VARIO design offers full articulation with 360° rotation and 180° pivot, allowing the lifting point to safely align with multi-directional loads. Each unit is equipped with the patented ICE-Bolt, delivering higher fatigue resistance, optimum WLL and a captive yet exchangeable bolt design. The VARIO model is additionally supplied with a DIN crack-tested collared nut, ensuring secure installation and enhanced durability. Compliant with EN 1677-1 and AS 3776, the VLBG-PLUS VARIO offers up to 45% higher WLL, making it an advanced and reliable solution for critical lifting and rigging operations.

    Features:

    • Up to 45% higher WLL capacity
    • Grade 120 for increased wear resistance
    • Patented ICE-Bolt for optimal performance
    • 360° rotation and 180° pivot for full articulation
    • Wide range of metric thread sizes
    • Vario version includes DIN crack-tested collared nut
    • 4:1 safety factor (RUD standard)
    • Complies with EN 1677-1 and AS 3776

  • Shipping & Handling Fees

    We are pleased to offer free pick up from a branch or delivery that includes shipping and handling fees.

    Local Pick Up - FREE

    We have 5 convenient locations where you can pick up your order including:
    • Rocklea QLD
    • Glendenning NSW
    • Campbellfield VIC
    • Cameron Park NSW
    • Dandenong VIC

    Shipping & Handling Fees

    A shipping and handling fee applies to all orders that aren’t picked up from an All Lifting branch.
    All shipping fees are calculated at checkout based on the value of your cart.

    For full terms & conditions including our refunds policy please visit our Shipping Terms and Conditions

    Cart Value $ Shipping and Handling Fees
    $0-$50 $25
    $50.01-$100 $35
    $100.01-$300 $40
    $300.01-$500 $50
    $500.01-$800 $70
    $800.01-$1,000 $100
    $1,000.01-$2,000 $300
    $2,000.01-$3,000 $400

Read terms, conditions & refund policy here

Product Specifications

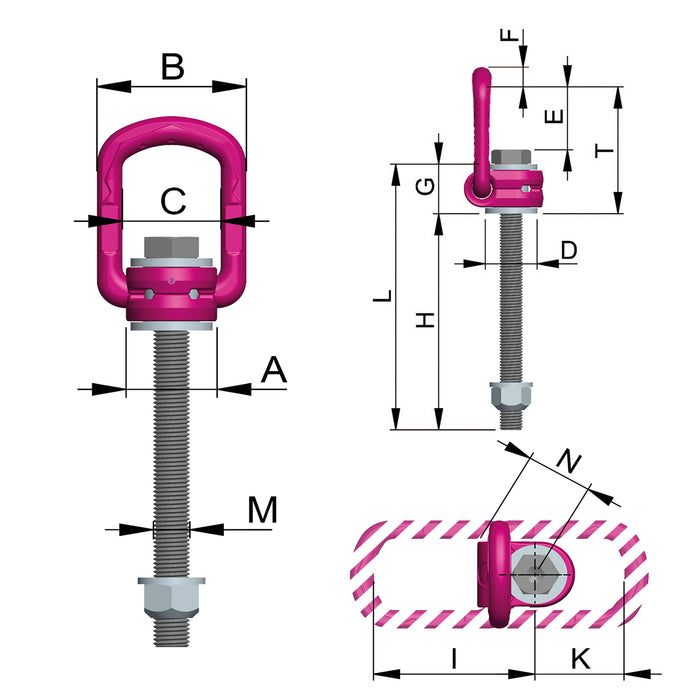

Part Number Type WLL (t) Torque (Nm) Dimensions in mm
T A B C D E F G H I K L N
9908 M8 0.63 30 75 30 54 34 24 40 10 29 8-76 75 45 37-105 32
9910 M10 0.9 60 75 30 54 34 24 39 10 29 10-96 75 45 39-125 32
9912 M12 1.35 150 75 32 54 34 26 38 10 29 12-116 75 45 41-145 32
9916 M16 2 150 85 33 56 36 30 39 13.5 36 16-149 86 47 52-185 38
9920 M20 3.5 400 110 50 82 54 45 55 16.5 43 20-187 113 64 63-230 48
9924 M24 4.5 760 125 50 82 54 45 67 18 43 24-222 130 78 67-265 48
9930 M30 6.7 1000 147 60 103 65 60 67 22.5 61 30-279 151 80 91-340 67
9936 M36 8 800 197 77 122 82 70 97 26.5 77 36-223 205 110 113-300 87
9942 M42 10 1000 197 77 122 82 70 94 26.5 77 42-273 205 110 119-350 70
9944 M42 15 1500 222 95 156 100 85 109 36 87 42-263 230 130 129-350 100
9948 M48 20 2000 222 95 156 100 95 105 36 87 48-303 230 130 135-350 100
