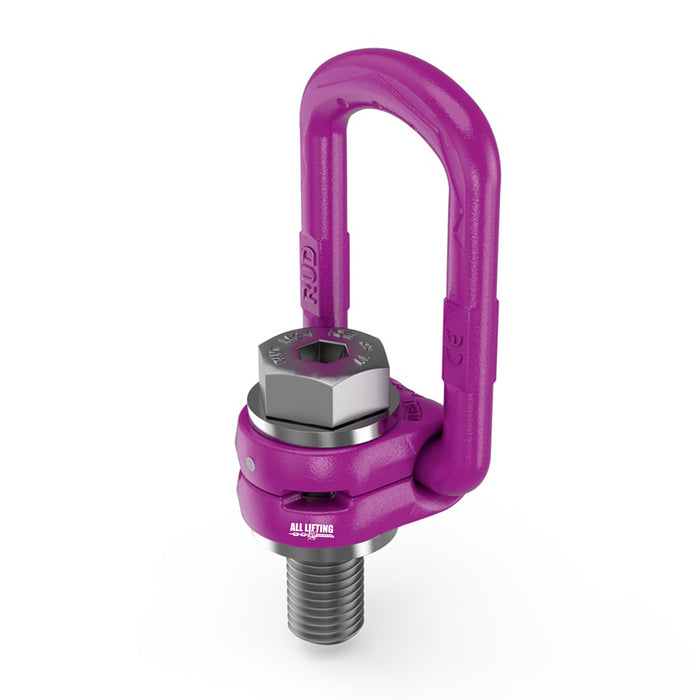

Load Ring VLBG-PLUS - RUD

by All Lifting
Price on Application
Enquire

  • Description

    The Load Ring VLBG-PLUS - RUD is a premium lifting point engineered for maximum versatility and safety. It offers a full 360° rotation and a 180° pivoting suspension ring for flexible load alignment. Equipped with a captive but exchangeable RUD-Bolt featuring Corrud-DT corrosion protection, it ensures long service life even in harsh conditions. The clamping spring provides noise reduction and maintains the ring in the desired position during setup.

    Each unit is clearly marked with its Working Load Limit (WLL) and includes multiple thread options, Metric, Fine Metric, UNC, and UNF, with variable bolt lengths for tapped or through holes. Tested and certified.

    Perfect for heavy lifting, tilting, or turning applications, the VLBG-PLUS ensures safety, precision, and easy handling, backed by RUD’s renowned German engineering and quality.

    Features:

    • 360° rotating lifting point with a 180° pivoting suspension ring for optimal load alignment.
    • Captive, interchangeable RUD-Bolt with Corrud-DT corrosion protection for long service life.
    • Clamping spring mechanism reduces noise and holds the ring in position for easier setup.
    • Clear WLL markings for all loading directions to ensure safe, compliant lifting.
    • Variable bolt lengths available to suit tapped or through holes.
    • Quick installation using a single bolt connection.
    • Compatible with flat, ring wrench, or Allen key assembly.
    • Hand tightening with the appropriate wrench is sufficient for single lifts.
    • Suitable for swivelling, tilting, and turning operations when correctly installed.

  • Shipping & Handling Fees

    We are pleased to offer free pick up from a branch or delivery that includes shipping and handling fees.

    Local Pick Up - FREE

    We have 5 convenient locations where you can pick up your order including:
    • Rocklea QLD
    • Glendenning NSW
    • Campbellfield VIC
    • Cameron Park NSW
    • Dandenong VIC

    Shipping & Handling Fees

    A shipping and handling fee applies to all orders that aren’t picked up from an All Lifting branch.
    All shipping fees are calculated at checkout based on the value of your cart.

    For full terms & conditions including our refunds policy please visit our Shipping Terms and Conditions

    Cart Value $ Shipping and Handling Fees
    $0-$50 $25
    $50.01-$100 $35
    $100.01-$300 $40
    $300.01-$500 $50
    $500.01-$800 $70
    $800.01-$1,000 $100
    $1,000.01-$2,000 $300
    $2,000.01-$3,000 $400

Read terms, conditions & refund policy here

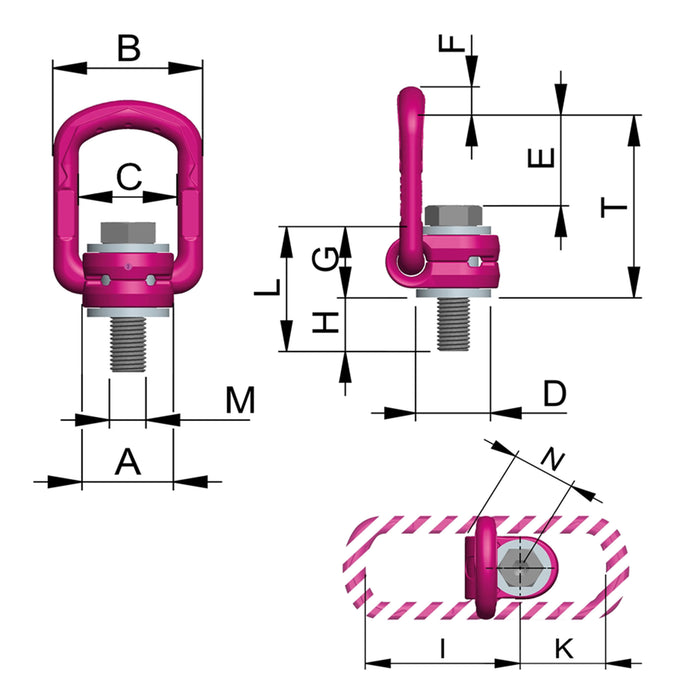

Product Specifications

Part Number Type WLL (t) Weight (kg/pc) Torque (Nm) Dimensions in mm
T A B C D E F G H I K L N
9808 M8 0.63 0.3 30 75 30 54 34 24 40 10 29 11 75 45 40 32
9810 M10 0.9 0.32 60 75 30 54 34 24 39 10 29 15 75 45 44 32
9812 M12 1.35 0.33 150 75 32 54 34 26 38 10 29 18 75 45 47 32
9816 M16 2 0.55 150 85 33 56 36 30 39 13.5 36 22 86 47 58 38
9820 M20 3.5 1.3 400 110 50 82 54 45 55 16.5 43 32 113 64 75 48
9824 M24 4.5 1.5 760 125 50 82 54 45 67 18 43 37 130 78 80 48
9830 M30 6.7 3.3 1000 147 60 103 65 60 67 22.5 61 49 151 80 110 67
9834 M36 8 6.2 800 197 77 122 82 70 97 26.5 77 63 205 110 140 87
9842 M42 10 6.7 1000 197 77 122 82 70 94 26.5 77 73 205 110 150 70
9844 M42 15 10.9 1500 222 95 156 100 85 109 36 87 63 230 130 150 100
9848 M48 20 11.6 2000 222 95 156 100 95 105 36 87 73 230 130 160 100
