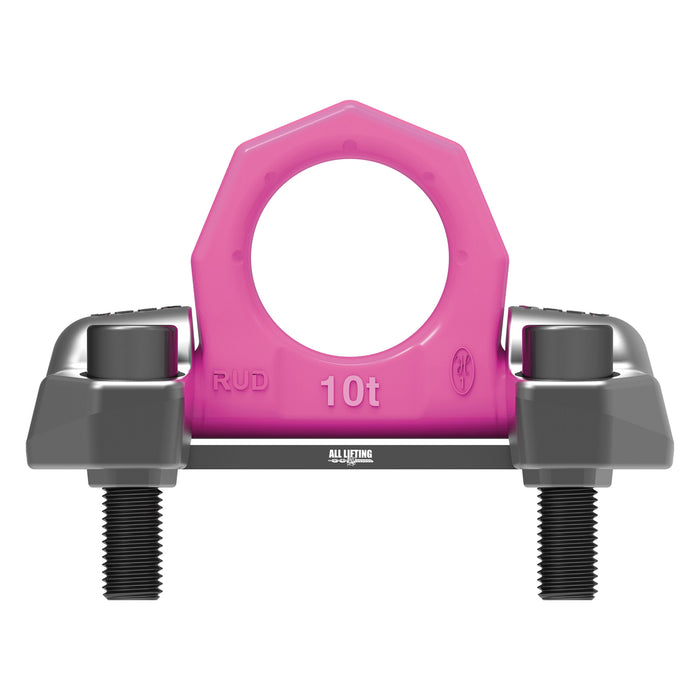

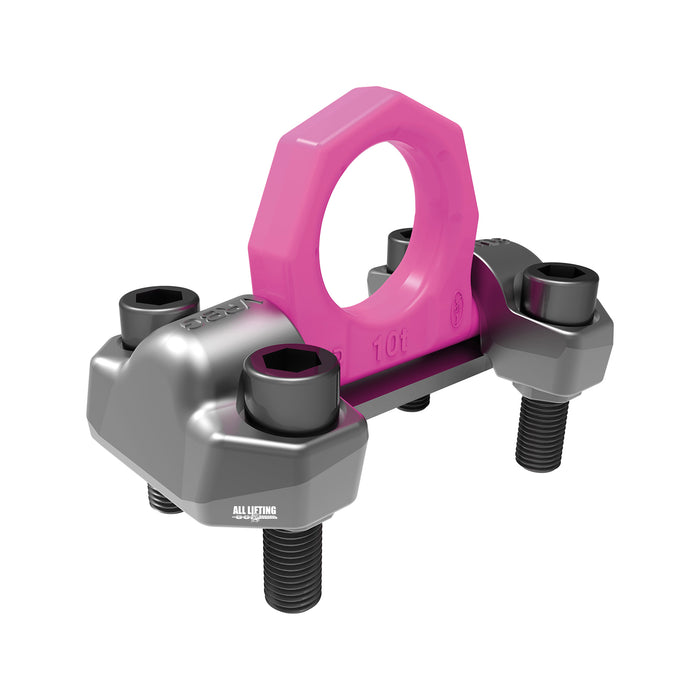

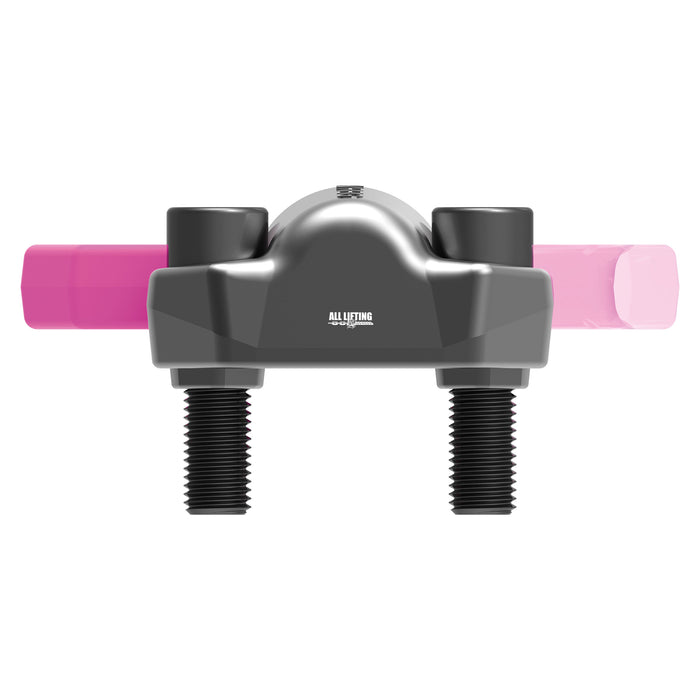

Load Ring Bolt-On VRBG - RUD

by All Lifting
Price on Application
Enquire

  • Description

    The Load Ring Bolt-On VRBG is engineered for safe, controlled and efficient force application in demanding lifting and lashing environments. Designed with a low-profile body and advanced load-bearing geometry, it delivers full Working Load Limit at 90° in line with the ring plane, making it ideal for applications requiring precise directional loading. The VRBG incorporates patented relief lugs that protect the securing bolt from bending and shear forces, significantly increasing service life and safety. Its compact profile allows it to be stowed with smaller bolts for installations with limited space, while the multi-fixture design ensures part-protecting force distribution.

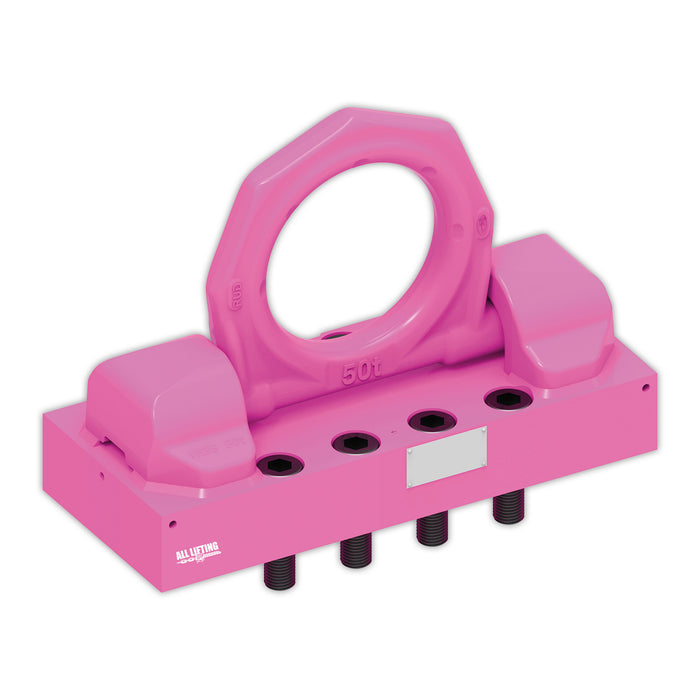

    The VRBG is available in capacities up to 16 tonnes, with welded-plate versions offering 31.5t and 50t options for heavy-duty operations. Built to RUD’s recognised 4:1 safety factor, this load ring delivers dependable performance for industrial lifting, transport, engineering and construction applications.

    Features

    • Full WLL at 90° in line with the ring plane
    • Patented relief lugs reduce bending and shearing loads on the securing bolt
    • Low-profile design for compact stowage with smaller bolts
    • Part-protecting load distribution through multiple fixtures
    • WLL up to 16t, with welded-plate models rated to 31.5t and 50t
    • RUD 4:1 safety factor for maximum reliability

  • Shipping & Handling Fees

    We are pleased to offer free pick up from a branch or delivery that includes shipping and handling fees.

    Local Pick Up - FREE

    We have 5 convenient locations where you can pick up your order including:
    • Rocklea QLD
    • Glendenning NSW
    • Campbellfield VIC
    • Cameron Park NSW
    • Dandenong VIC

    Shipping & Handling Fees

    A shipping and handling fee applies to all orders that aren’t picked up from an All Lifting branch.
    All shipping fees are calculated at checkout based on the value of your cart.

    For full terms & conditions including our refunds policy please visit our Shipping Terms and Conditions

    Cart Value $ Shipping and Handling Fees
    $0-$50 $25
    $50.01-$100 $35
    $100.01-$300 $40
    $300.01-$500 $50
    $500.01-$800 $70
    $800.01-$1,000 $100
    $1,000.01-$2,000 $300
    $2,000.01-$3,000 $400

Read terms, conditions & refund policy here

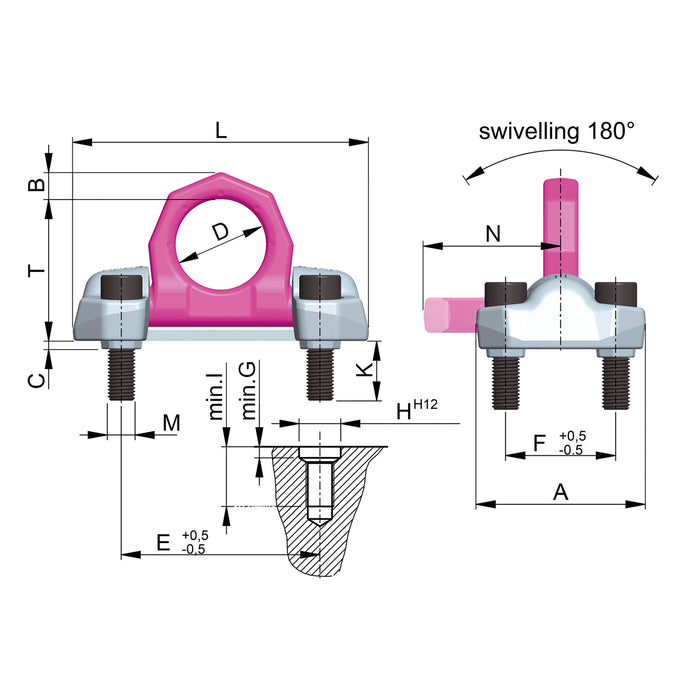

.Product Specifications

Part
Number		 W.L.L
(t)		 Weight (Kg) Torque
(Nm)		 A B C D E F G H J K L M N T
01RB9030 3 1.07 120 34 16 5 48 22 92 6 18 30 1 178 16 71 67
02VRBG10 10 6.7 300 120 22 6 65 143 78 8 30 50 43 213 20 100 103
02VRBG16 16 11.3 600 170 30 8 90 198 104 10 46 70 63 270 30 134 131
02VRBG31 31.5 67.5 900 180 42 42 130 75 120 - - - 46 400 30 195 265
02VRBG50 50 198 1000 270 70 55 230 100 200 - - - 58 650 36 340 406
