Forklift Drum Rotators | All Lifting

Forklift Drum Rotators

by All Lifting
Price on Application
Enquire
  • Description

    Our Forklift Drum Rotators are easy-to-install devices, perfect for quickly and safely lifting and rotating your 205 litre drums. Thanks to its large worm drive gearbox, you’ll have 360 degree rotation of the drum entirely under your control. You won’t have to worry about dangerous and uncontrolled drum movement, as it will automatically and securely lock onto the Drum Dumper with the sturdy belly strap when operation is done. Plus, it comes with a durable zinc finish to ensure maximum protection and smooth operation.

    Features

    • Safely lift and rotate 205 litre steel drums by forklift
    • 360 degree rotation of the drum is fully controlled during operation
    • A large worm drive gearbox provides automatic braking of drum during rotation
    • When operation stops the drum will lock in position preventing dangerous and uncontrolled drum movement
    • Drum is secured into the Drum Dumper attachment with a sturdy belly strap and locked with the over-centre catch
    • Locking pin is inserted to prevent release of the catch during tipping cycle
    • Zinc finish

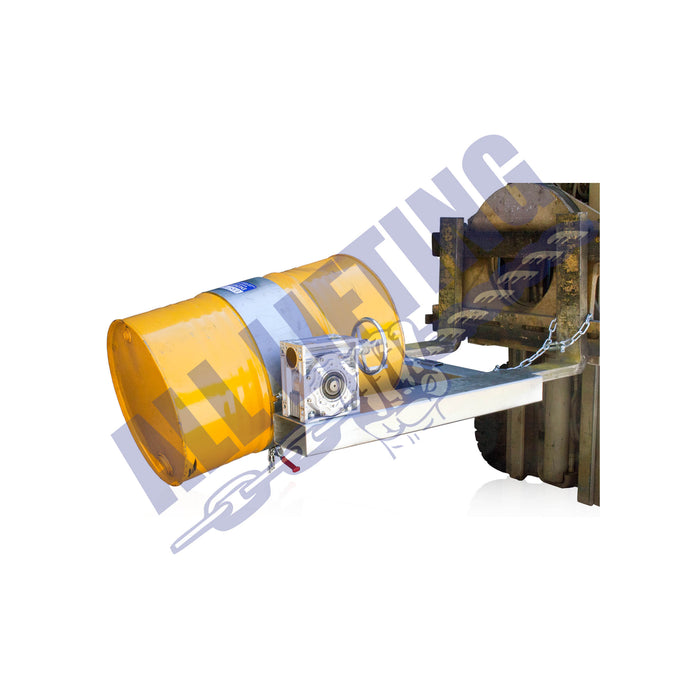

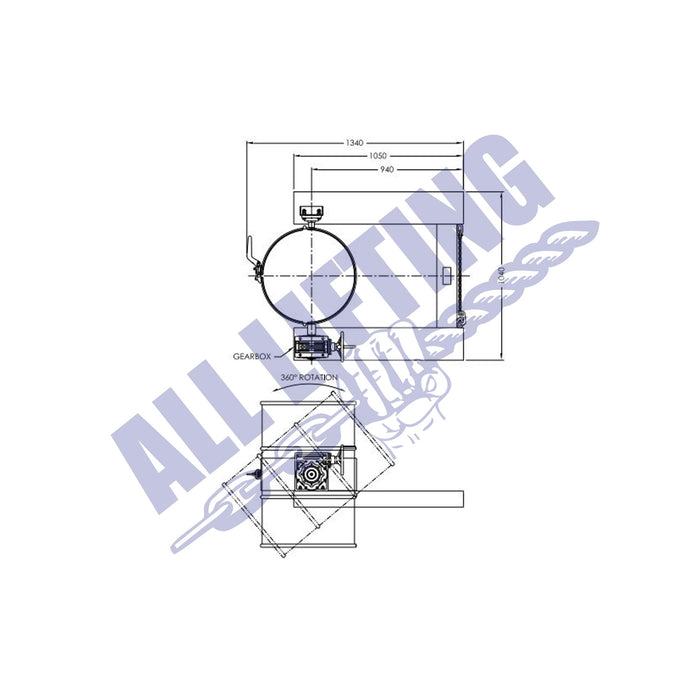

    Handle Operation - Rotation is carried out via the hand wheel fitted. Drum rotation is to chest height.

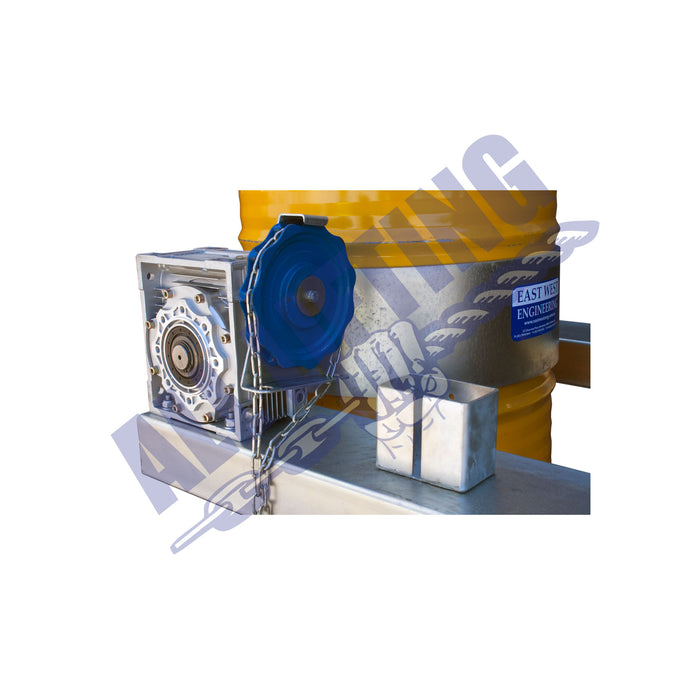

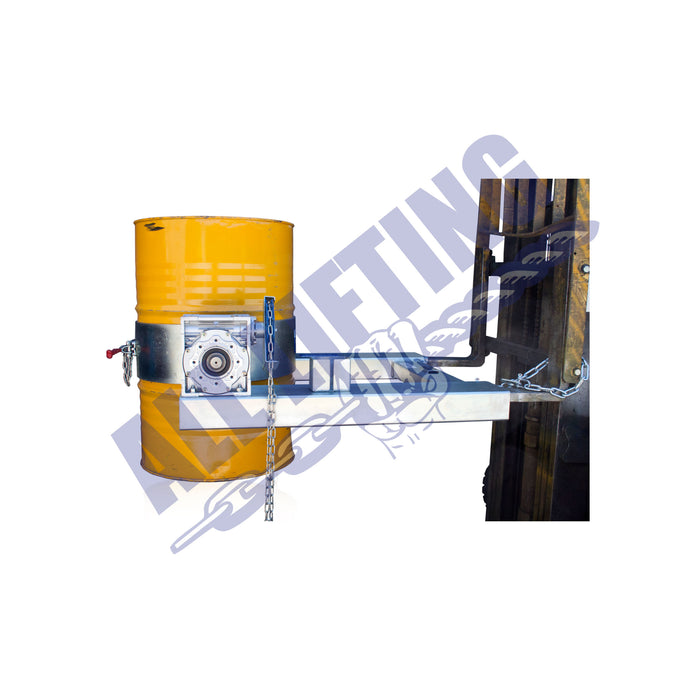

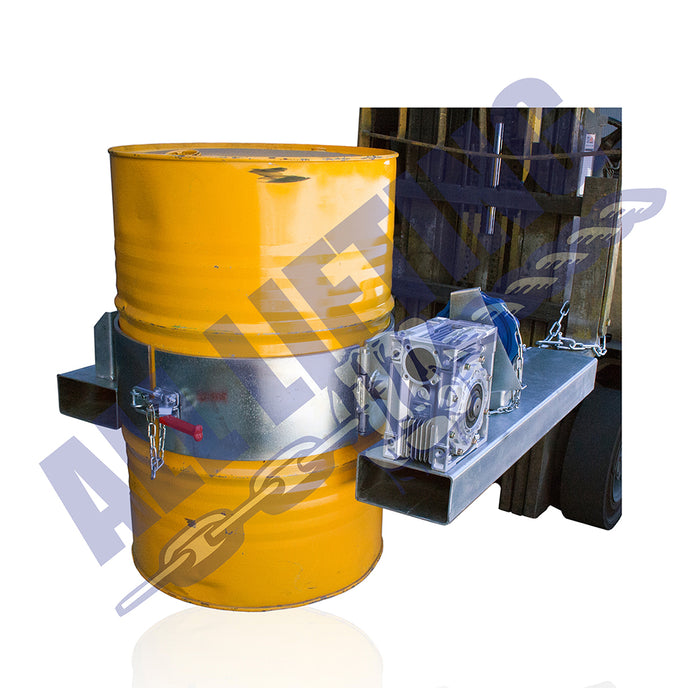

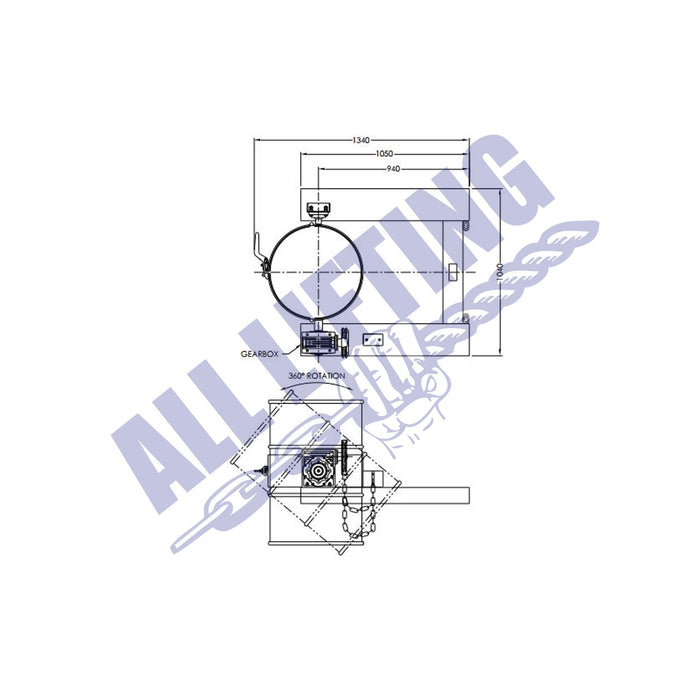

    Chain Operation - Rotation is carried out using the hand chain. Drum rotation is up to 3m high.

  • Shipping & Handling Fees

    We are pleased to offer free pick up from a branch or delivery that includes shipping and handling fees.

    Local Pick Up - FREE

    We have 5 convenient locations where you can pick up your order including:
    • Rocklea QLD
    • Glendenning NSW
    • Campbellfield VIC
    • Cameron Park NSW
    • Dandenong VIC

    Shipping & Handling Fees

    A shipping and handling fee applies to all orders that aren’t picked up from an All Lifting branch.
    All shipping fees are calculated at checkout based on the value of your cart.

    For full terms & conditions including our refunds policy please visit our Shipping Terms and Conditions

    Cart Value $ Shipping and Handling Fees
    $0-$50 $25
    $50.01-$100 $35
    $100.01-$300 $40
    $300.01-$500 $50
    $500.01-$800 $70
    $800.01-$1,000 $100
    $1,000.01-$2,000 $300
    $2,000.01-$3,000 $400

Prices are subject to change at any given moment

Product Specifications

Part #Price Inc GSTOperationWLL (kg)Drum Size (L)Unit Weight (kg)Rotation °Load Centre (mm)Pocket Size (mm)Pocket Centre (mm)HCG (mm)VCG (mm)
189DER40H Hand40020592360940185 x 6584070535
189DER40C Chain40020590360940185 x 6584070535
