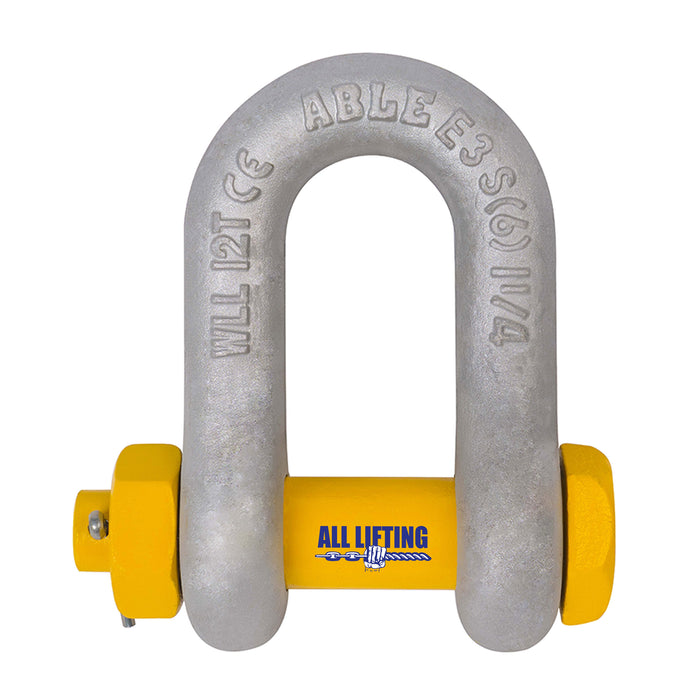

Rated Shackle Grade S Dee Safety Pin
by All Lifting
$8.05
Rated shackles are most commonly used for lifting applications, providing connections to chain, wire rope and other rated fittings within the marine, agricultural, mining, transport and engineering industries.
- Conforms to AS2741
- Marked with working load limit, grade, batch number, nominal size and supplier identification
- Hot dip galvanised
- Suitable for lifting & pulling applications
- Other sizes available at request
| Part # | Nominal Size (mm) | WLL (t) | Weight (kg) | H (mm) | 3 (mm) | 1 (mm) | 2 (mm) | C (mm) | L (mm) | M (mm) | P (mm) | C (mm) | H (mm) | |
| 06DSS02T | 13 | 2 | .34 | 20.6 | 15.8 | 12.7 | 31 | 31 | 46 | 54.5 | 70.3 | 3.3 | 1.5 | |
| 06DSS03.2T | 16 | 3.25 | .67 | 27 | 18.8 | 16 | 40 | 40 | 59 | 67 | 88 | 6.35 | 1.5 | |
| 06DSS04.7T | 19 | 4.75 | 1.14 | 32 | 22 | 19.1 | 48 | 48 | 70 | 82 | 101 | 6.35 | 1.5 | |
| 06DSS06.5T | 22 | 6.5 | 1.75 | 37 | 25 | 22 | 54 | 54 | 81 | 93 | 117 | 6.35 | 1.5 | |
| 06DSS08.5T | 25 | 8.5 | 2.52 | 43.5 | 28 | 26.5 | 60 | 60 | 96.5 | 104 | 137 | 6.35 | 1.5 | |
| 06DSS09.5T | 29 | 9.5 | 3.45 | 48 | 32 | 29 | 68 | 68 | 106 | 120 | 145.5 | 6.35 | 1.5 | |
| 06DSS12T | 32 | 12 | 4.93 | 53 | 35 | 32 | 76 | 76 | 117 | 131 | 160 | 6.35 | 1.5 | |
| 06DSS17T | 38 | 17 | 8.4 | 62 | 42 | 38 | 92 | 92 | 138 | 159 | 194.5 | 6.35 | 3.3 | |
| 06DSS25T | 45 | 25 | 14.26 | 75 | 50 | 45 | 106 | 106 | 165 | 188.5 | 228 | 6.35 | 3.3 |
