Hammer Head Lifeline System

by All Lifting
Price on Application

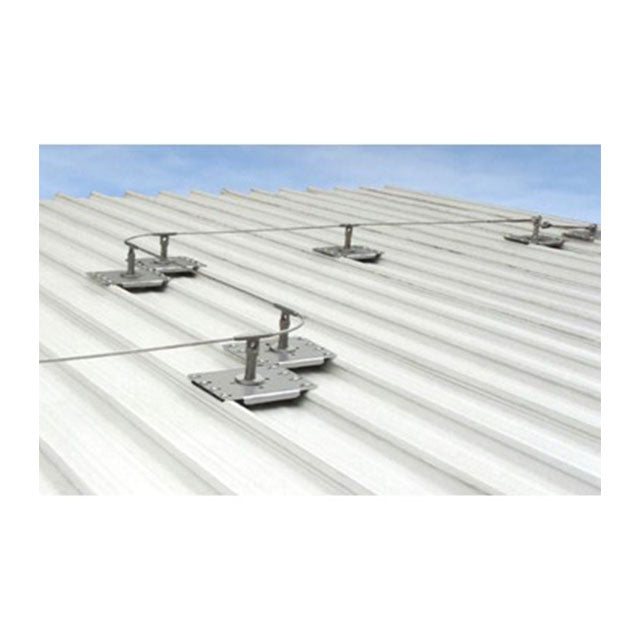

Our Hammer Head Lifeline System is top quality of fall arrest protection for workers operating at heights. This system is permanently installed on buildings and structures where the risk of falling exists, providing a robust and tested solution engineered to absorb loads generated by accidental falls. Tailored for scenarios requiring a harness attachment system, it is designed to protect 1 to 4 workers simultaneously within a single span. The Hammer Head Lifeline System is not only adept at safeguarding workers but is also engineered to minimize structural damage in the event of a fall. Versatile and reliable, it can be fixed to surfaces not initially designed for structural loads, offering peace of mind for a secure and efficient working environment.


  • Fall arrest protection system permanently installed on buildings and other structures where workers are at risk of falling
  • Engineered and tested to absorb loads generated by accidental falls in the workplace
  • Protects workers that are required to work at heights were a harness attachment system is required
  • Designed so that minimal damage occurs to the structure the system is attached to in the event of a fall
  • Can be fixed to surfaces that are not primarily designed to take structural loads
  • Designed to protect 1 to 4 workers attached simultaneously to the same line with 3 workers within a single span

Note: Each worker needs to be fitted with a full body harness and lanyard with a suitable energy absorber; the workers connect themselves to the lifeline via a glider which can move along the line.
Can be used for overhead, shoulder or foot mounted applications, and around corners at 500mm radius bend.

Product Specifications

Shipping & Handling Fees

Max. Force Applied (kN)


Max. Users

Max. Span (m)

Radius of Bend (mm)



AS/NZS 1891

3 people



Stainless Steel
