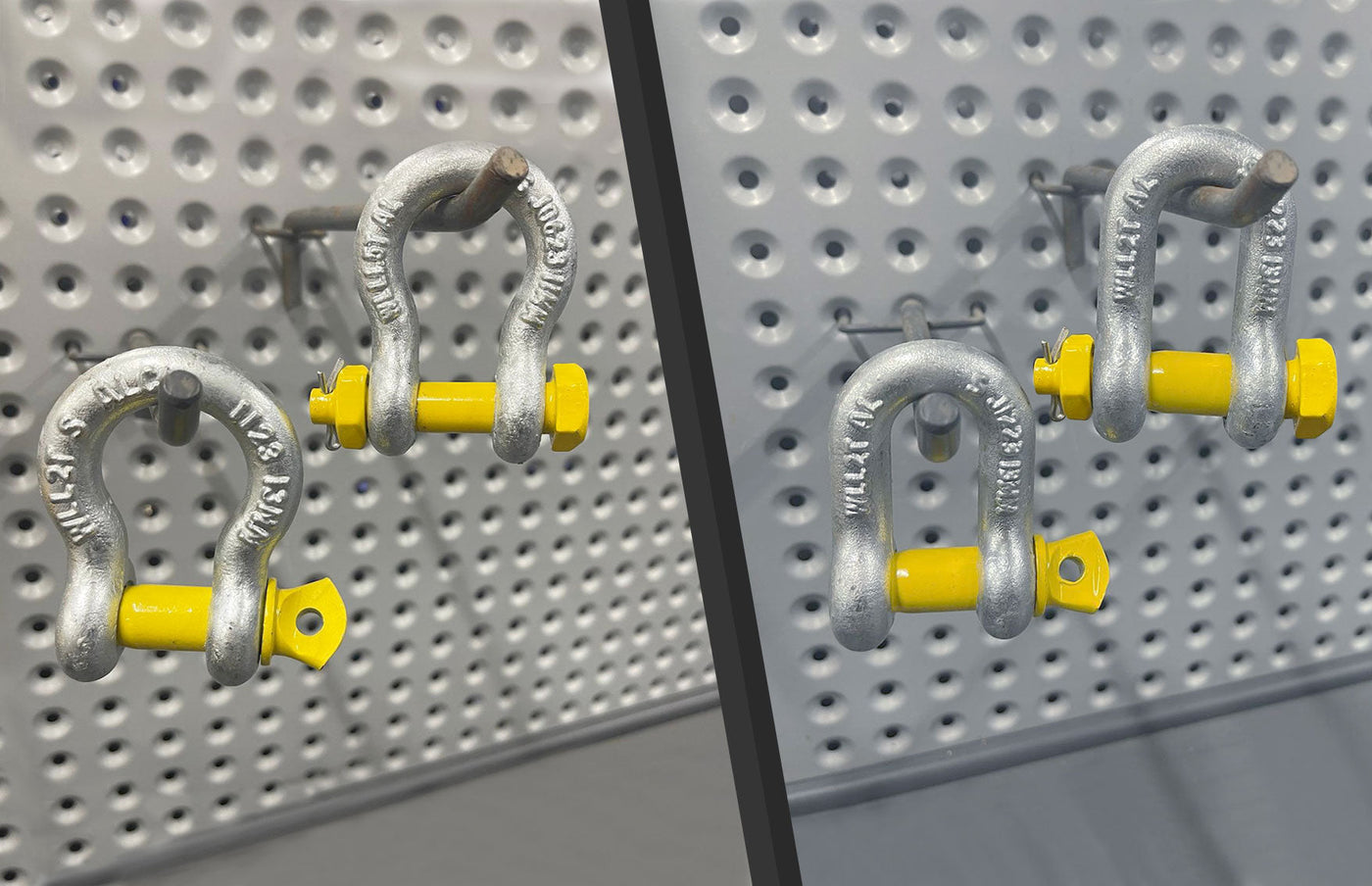

RATED BOW SHACKLES VS RATED DEE SHACKLES

When it comes down to selecting the right shackle for your lifting and rigging project, it is crucial to understand the differences between bow shackles and dee shackles as they are commonly used in this industry. At All Lifting, we offer a wide range of high-quality shackles designed to meet various lifting and rigging needs. In this blog, we’ll explore the key differences between bow shackles and dee shackles to help you make an informed choice for your application.

What is a Bow Shackle?

Bow shackles, also known as anchor shackles, are designed with a large, rounded shape. This design allows them to handle a variety of load directions and configurations. Some of the key point are:

• Design and Shape: Bow shackles feature a broad, U-shaped body with a wide throat. This design provides ample space for connecting multiple items or handling complex loads. The pin typically threads through the wide opening, allowing for a secure connection.
• Load Handling: The wide throat of a bow shackle allows for better load distribution and reduces the risk of stress concentrations. This makes them ideal for handling loads that may shift or change direction.
• Applications: A bow shackles design allows them to connect slings, chains, or ropes to loads or equipment, making them ideal for use in marine environments, construction, mining, automotive recovery, and outdoor activities. Their robust, rounded shape ensures they can handle significant stress, and their corrosion-resistant materials make them suitable for harsh conditions.

 What is a Dee Shackle?

Dee shackles, also known as D-shackles, have a more compact and angular shape compared to bow shackles. Here are some insights:

• Design and Shape: Dee shackles are characterised by their elongated, D-shaped design with a straight side and a semi-circular bend. The pin is inserted through the narrower end of the shackle. This design is more streamlined and is well-suited for specific applications.
• Load Handling: Dee shackles are designed to handle loads that are aligned directly with the shackle. Their narrow throat is optimised for straight-line lifting applications, providing efficient load handling in these situations.
• Applications: Dee shackles are commonly used in marine and construction settings where space is limited, and loads are typically applied in a straight line. They are ideal for situations where precision and alignment are critical.

Key Differences Between Bow Shackles and Dee Shackles

1. Shape and Size:


   - Bow Shackle: Features a wide, circular shape with a larger throat, accommodating multiple connections and various load angles.
   - Dee Shackle: Has a narrower, more compact shape with a straight side, designed for straight-line applications.

2. Load Distribution:
   - Bow Shackle: Provides more even load distribution due to its broad design, reducing stress concentrations and enhancing safety.
   - Dee Shackle: Distributes loads efficiently along a straight line, but may not handle side loads as effectively.



3.  Applications:
   - Bow Shackle: Suitable for diverse applications, including lifting, towing, and rigging where flexibility and multiple connections are needed, offering greater versatility for handling complex loads and connecting multiple items simultaneously.
   - Dee Shackle: Best for applications with straight-line loads, often found in marine, construction environments, and applications with limited space and straightforward load alignment.

Choosing the Right Shackle for Your Needs

Selecting between a bow shackle and a dee shackle depends on your specific application requirements:

- Complex Loads: If you need to handle loads from various angles or connect multiple items, a bow shackle is likely the better choice due to its versatility.

- Straight-Line Loads: For applications where the load is aligned directly with the shackle and space is limited, a dee shackle provides efficient handling and a compact design.

At All Lifting, we pride ourselves on offering a comprehensive range of shackles to suit your lifting and rigging needs. Whether you need the versatility of a bow shackle or the precision of a dee shackle, our team is here to help you select the right equipment for your application. Contact us today for expert advice and high-quality shackles that meet the highest safety standards.
