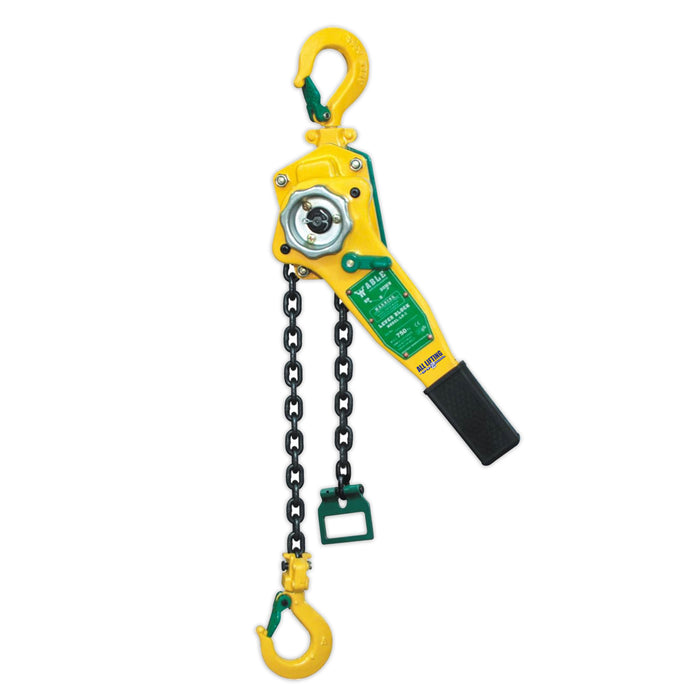

ALS Lever Block LB II Series
by All Lifting
Price on Application
- Superior Grade 80 load chain-Wafios link, Din standard
- Forged and heat treated load hooks with batch trace-ability and stretch indicators
- 360 degree handle rotation with stroke to ratchet indicators
- Double pawl brake system
- Asbestos free brake linings
- Forged safety latch
- Sealed roller bearings
- 100% load tested to 1.5 x WLL
| Capacity (t) | Standard Lift (m) | Test Load (t) | Pulling Efforts (kg) | Chain fall No. | Load Chain Dia. (mm) | Net Weight (kg) |
| 0.5 | 1.5 | 0.75 | 10 | 1 | 6 | 5.9 |
| 0.75 | 1.5 | 1.13 | 14 | 1 | 6 | 6.6 |
| 1 | 1.5 | 1.5 | 16 | 1 | 6 | 6.8 |
| 1.5 | 1.5 | 2.25 | 22 | 1 | 8 | 10.8 |
| 2 | 1.5 | 3 | 26 | 1 | 8 | 11.1 |
| 3 | 1.5 | 4.5 | 32 | 1 | 10 | 18.2 |
| 6 | 1.5 | 9 | 34 | 2 | 10 | 28.1 |
| 9 | 1.5 | 13.5 | 34 | 3 | 10 | 38 |
| Capacity (t) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
| 0.5 | 148 | 280 | 45 | 96 | 325 |
| 0.75 | 148 | 280 | 45 | 96 | 325 |
| 1 | 148 | 280 | 48 | 96 | 325 |
| 1.5 | 172 | 410 | 52 | 110 | 380 |
| 2 | 172 | 410 | 60 | 110 | 380 |
| 3 | 195 | 410 | 66 | 145 | 480 |
| 6 | 195 | 410 | 80 | 145 | 480 |
| 9 | 195 | 410 | 94 | 155 | 510 |
