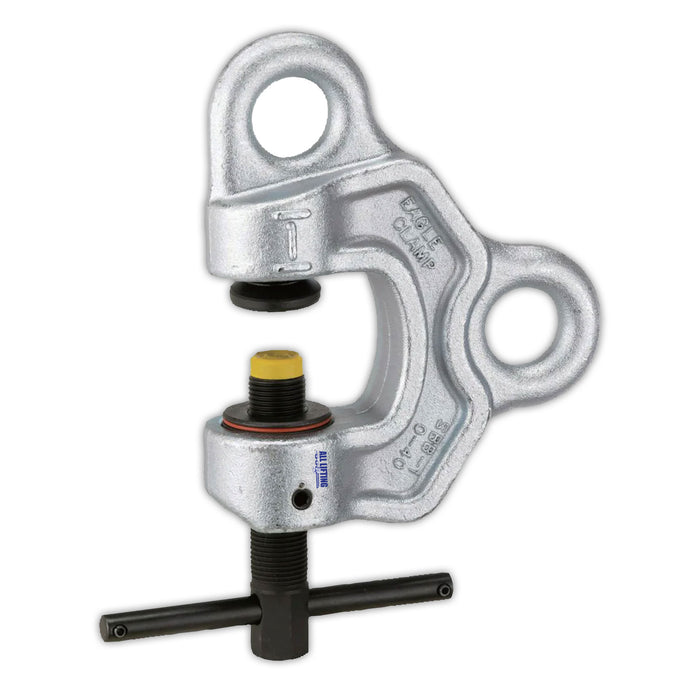

SBB Series Multi Directional Lifting Screw Clamp
- Patented 'torque confirmation device' (visible red ring indicated when tightening force is achieved)
- For horizontal and vertical lifting applications
- Spring type pressure locking device
- Twin shackle allows for movement in any direction
- Double safety feature with screw type vice and automatic clamping mechanism
- Forged special alloy steel body with a galvanised finish
- Clamp screw and swivel jaw made of induction hardened. alloy steel
- Tightening force must be minimum of 150kgf-cm
- Attachment and detachment are easily performed with the patented spring collar
- Manufactured in Japan
- Applications: lifting, moving steel plates
- Complies to AS 4991
Model |
WLL (t) |
Hardness Range |
Effective thickness |
SBB-05 |
0.5 |
Hv 85-320 |
1-25 |
SBB-1 |
1 |
Hv 85-320 |
1-40 |
SBB-2 |
2 |
Hv 85-320 |
1-40 |
SBB-3 |
3 |
Hv 85-320 |
5-35 |
SBB-5 |
5 |
Hv 85-320 |
10-40 |
